Soterix Medical Mobile EEG

The first truly mobile EEG device offering research-grade brain signals

Soterix Medical Mobile EEG

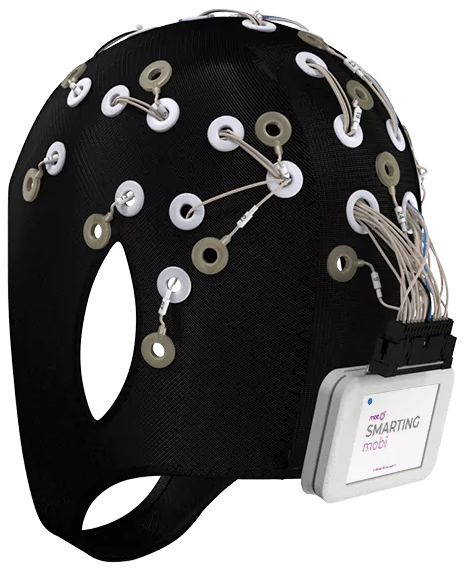

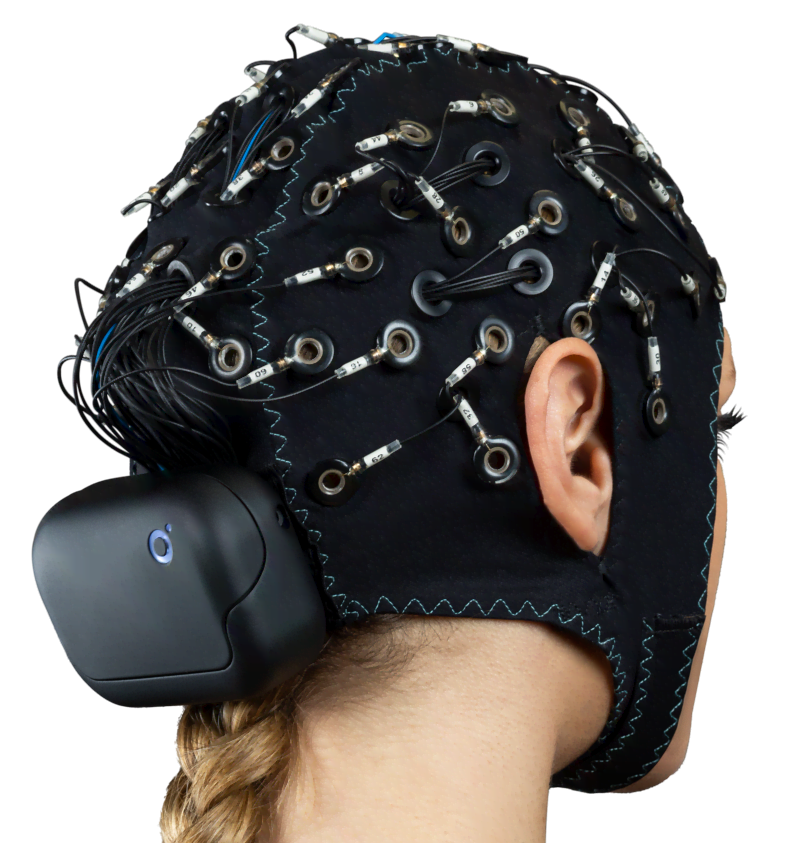

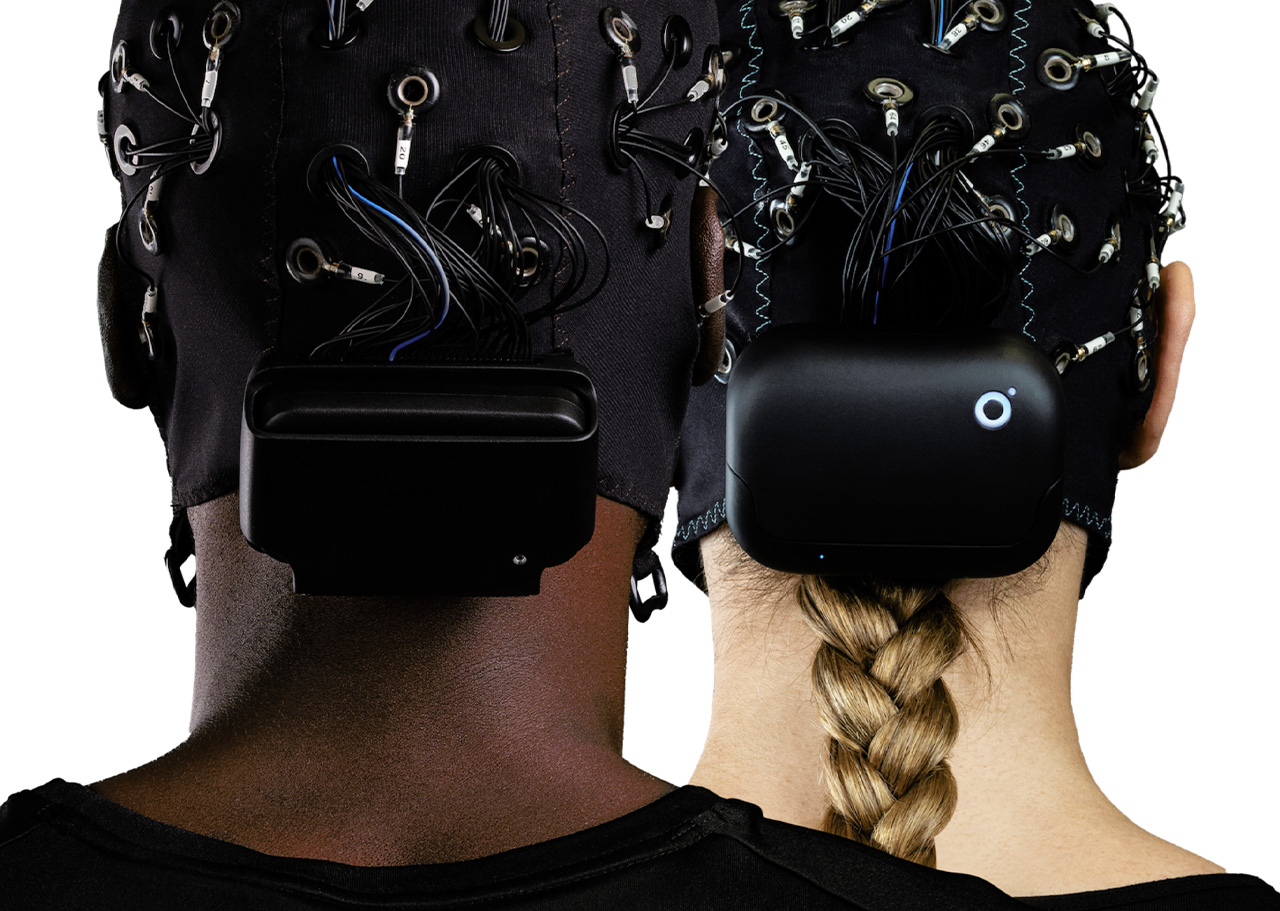

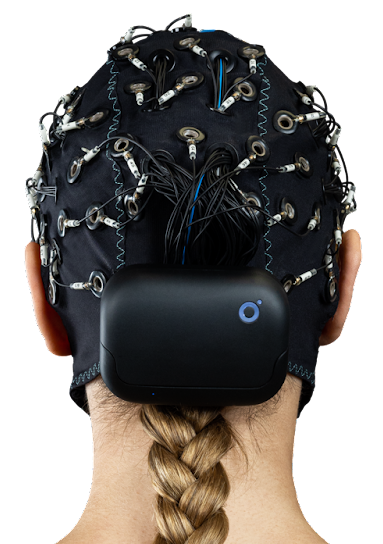

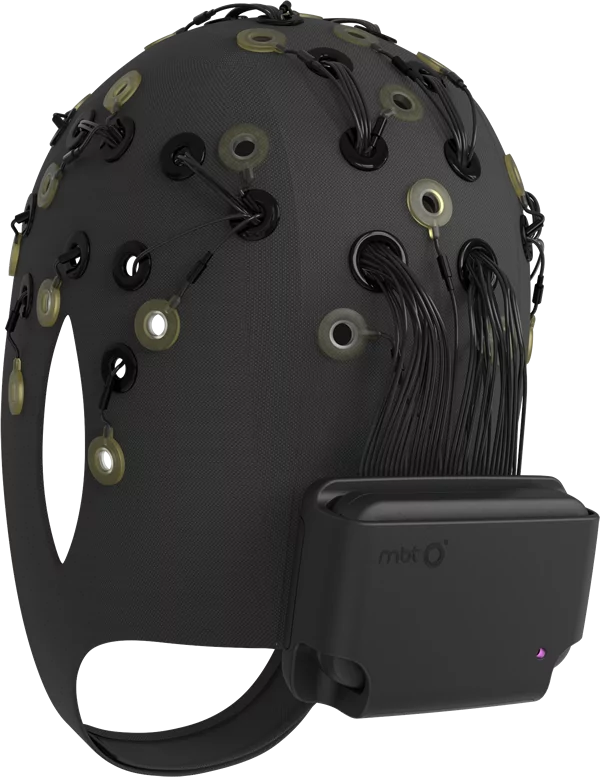

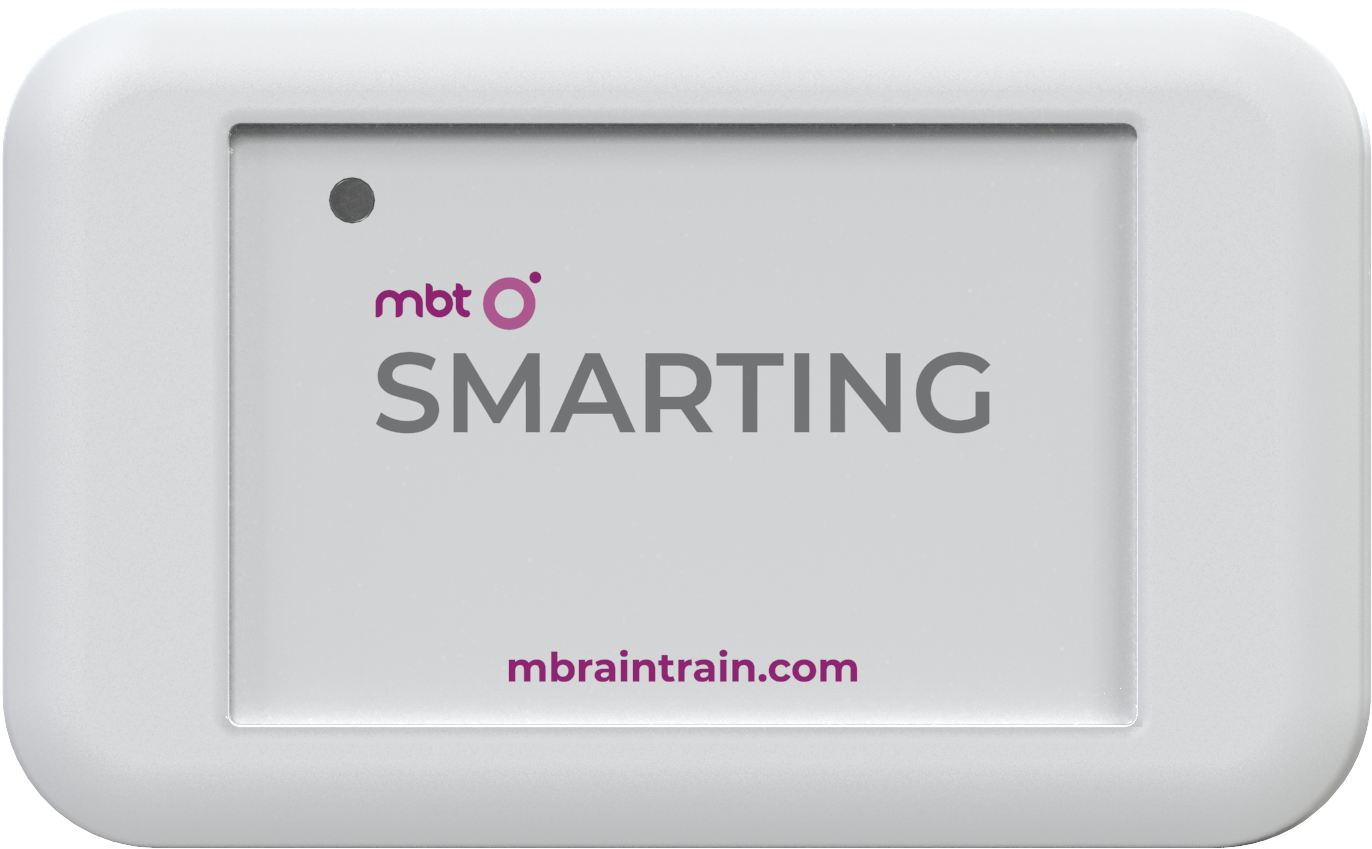

The SMARTING system is the only true wire-free mobile EEG system that allows collecting research-grade brain signals. The system holds the amplifier on the head and makes a wireless connection to the controller (PC or smartphone) for a true un-tethered experience. With 500Hz sampling, 24 bit resolution, 500 Mohm input impedance, 1 µV input referred noise and industry-leading CMRR>120 dB, the system design ensures that you do not need to compromise on high quality data.

Mobile, Simple to use, and Easy to Synchronize:

  • Record brain activity in un-restricted and natural environment-which means that you can carry and wear the system easily and anywhere.
  • Simple operation with obvious controls.
  • Easy insertion of markers and triggers.
  • Easy synchronization with other sensors with no need for any additional hardware. This is made possible by integrated Lab Streaming Layer(LSL) support.
Soterix Medical Mobile EEG simple to use

Lightweight, Wireless and Rapid Set-up

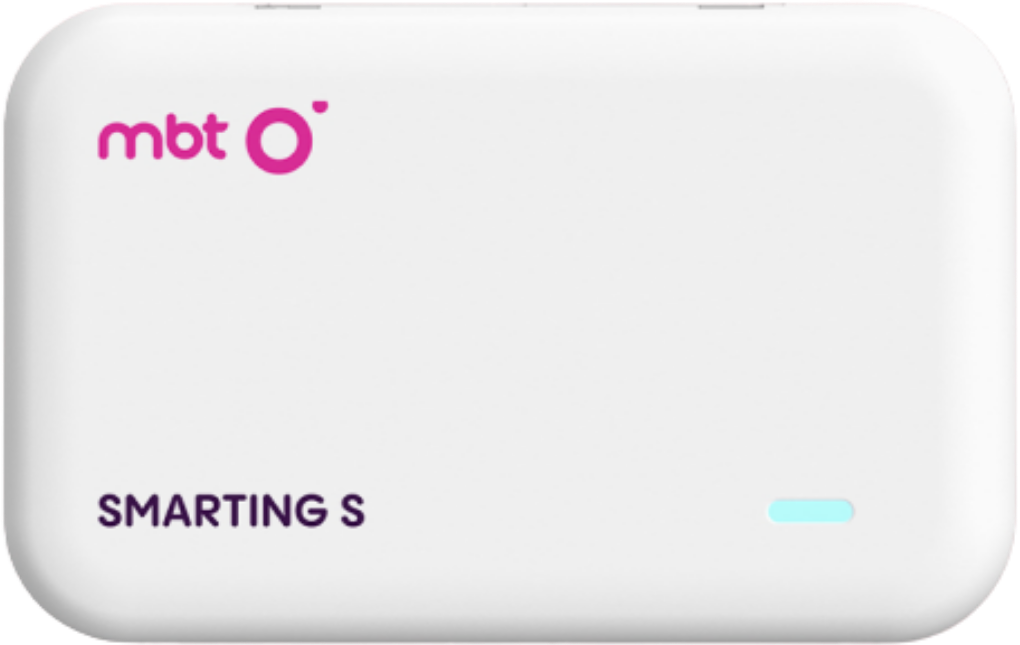

  • Small light-weight amplifier (< 60g ).
  • Accompanying mobile app for real-time wire free brain activity monitoring.
  • Scientists and researchers can set up the device on PC or smartphone in < 10 minutes and begin to collect high quality data.
  • Acquired EEG data can be readily analyzed in MATLAB or EEGLAB.
Soterix Medical Mobile EEG Lightweight and Wireless

High quality ERP recordings

  • High quality event-related potential (ERP) recordings outside the laboratory environment.
  • No need for hardware triggering due to high precision wireless triggering through UDP and LSL protocols.
  • Delay and jitter values obtained through the wireless protocol < 2 ms (depending on the stimulus delivery software) confirming that there is no need for hardwiring stimulus delivery. The figure on the right indicates the consistent ERPs among different trials (amplitude is color coded and 200 trials are aligned on the Y-axis) thereby attesting to the millisecond precision on the recordings.
Soterix Medical Mobile EEG High quality ERP recordings

Readiness Potential recorded with Smarting App

Soterix Medical Mobile EEG High quality ERP recordings

Visual Detection Task recorded with Smarting App

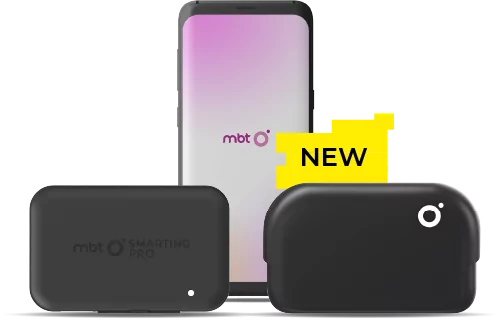

Use on other mobile devices

  • In addition to full mobility, the SMARTING android app maintains high signal quality and synchronization, while integrating mobile phone features in your experiments.
  • It enables signal recording and visualization, precise triggering information and manual inserting of event markers. Option for SDK and easy third party software integration is also provided.
  • In addition, other cellphone data (GPS and accelerometer) are also available to enable wider scope of experiments.
Soterix Medical Mobile EEG compatible with other mobile devices
