The NIRSIT ON

Bedside Brain Monitoring System

Soterix Medical functional Near Infrared Spectroscopy (fNIRS)

The NIRSIT ON is a device designed to measure regional oxygen saturation (rS02) and hemodynamic variations (ΔHb02, ΔHbR) in the prefrontal cerebral cortex by placing two patches (left/right) radiating a near-infrared light beam, at two/four wavelengths. The setup of the NIRSIT ON system includes Main Module, Link Module, patches, and a Surface Pro Tablet. We improved measurement accuracy by utilizing its advanced algorithm that compensates for the variations in optical components.


Key features

  • Provides non-invasive regional tissue oxygen saturation (rS02) monitoring - Absolute rS02 accuracy of 4%.
  • Uses dual sources and quadruple detectors to minimize artifacts.
  • Continuous measurement of (ΔHb02, ΔHbR, and ΔHT) with 32Hz temporal resolution.
  • CSV file format support for measured data.
  • Four-wavelength LED or Laser sources.

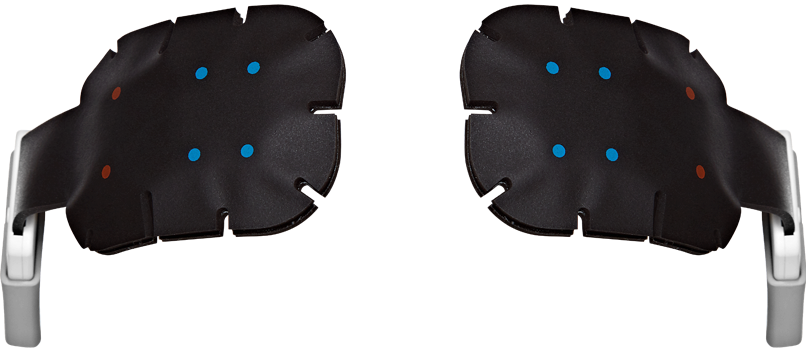

  • Flexible disposable patches for various head sizes and personal hygiene.
  • Tolerant to the ambient light.

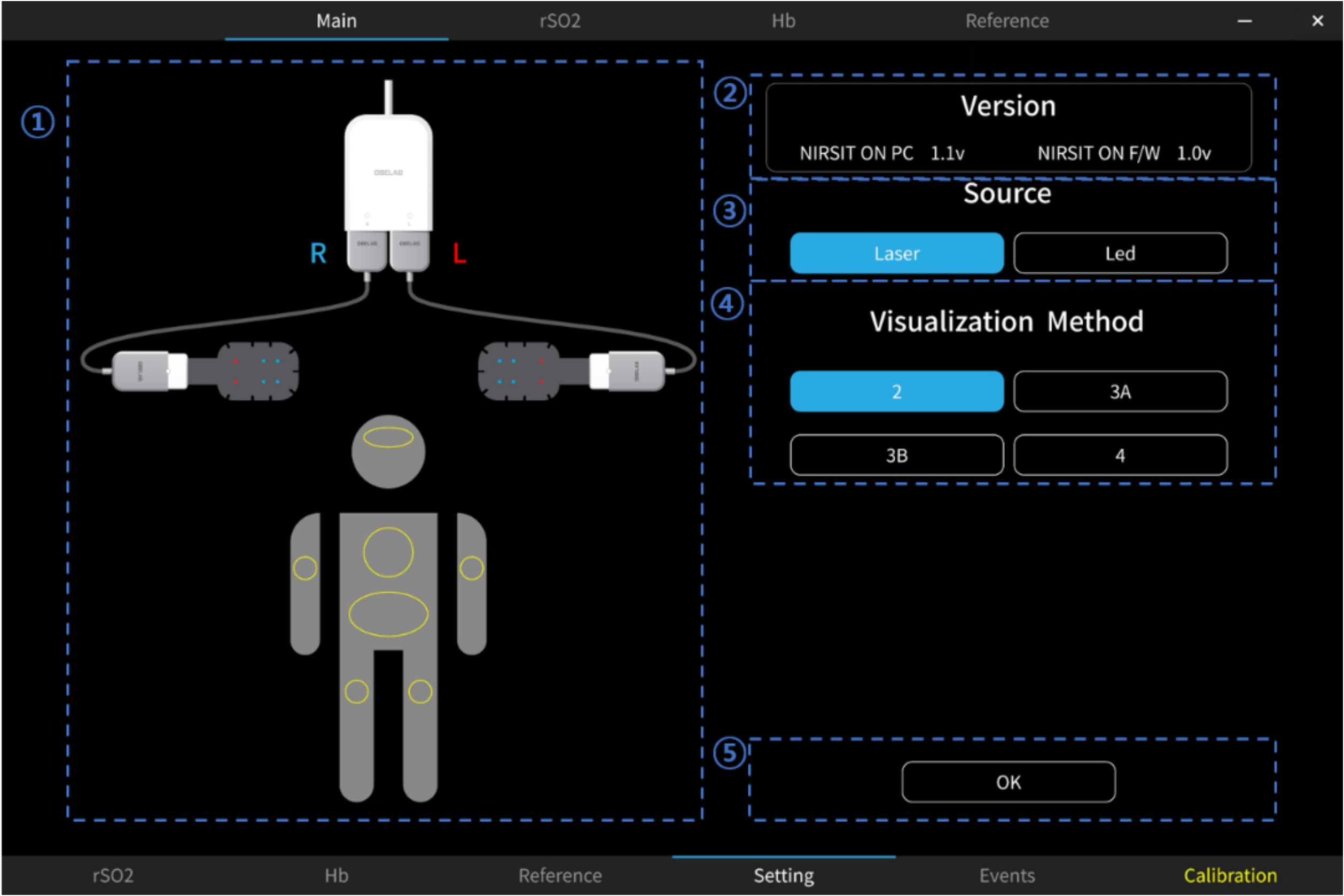

  • User-friendly graphical interface using tablet-based monitor.
fNIRS System

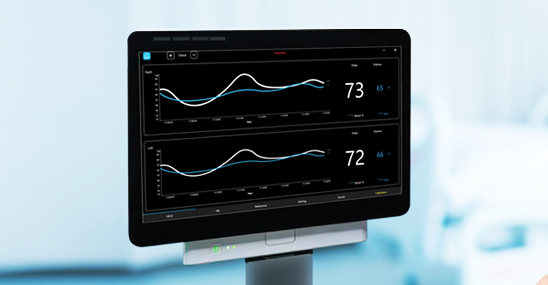

NIRSIT ON High Resolution

High temporal resolution (32Hz) - enabling continuous monitoring of minute changes compared to conventional systems.

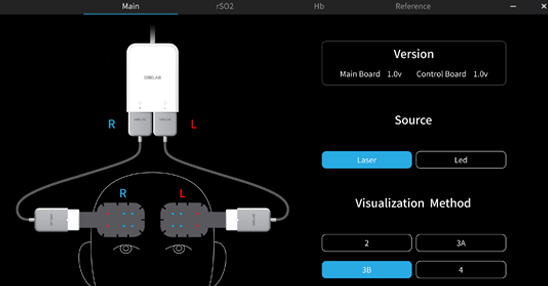

NIRSIT ON High Accuracy

High accuracy - applied SC-SRS and machine learning algorithm for enhanced accuracy.

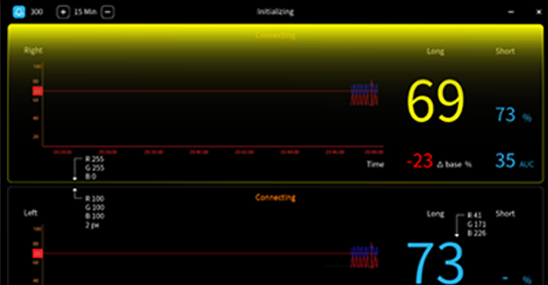

NIRSIT ON Instant Measurement

Instant measurement - using a disposable patch and fast set-up timing including gain.

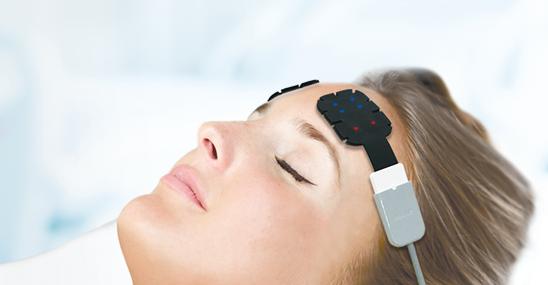

NIRSIT ON Medical Grade

Medical grade - disposable patch for patient hygiene.

NIRSIT by OBELAB is exclusively distributed in the US and Canada by Soterix Medical.

Caution! Investigational Device. Federal (or United States) law limits device to investigational use.
