SMARTING PRO Line

NEXT-GENERATION MOBILE EEG
DEVICES FOR ANY EXPERIMENT
SET-UP YOU CAN THINK OF

Soterix Medical Mobile EEG

The SMARTING PRO and SMARTING PRO X now offers a high density recording with up to 64 channels. Both are compatible with the Pro Streamer and a mobile app, including a battery life of over 10 hours of recordings, an SD card for outdoor recording, Bluetooth 5.0, 3D head tracking, and much more.

SMARTING PRO

The new standard in EEG with absolute 3D head motion tracking and real-time Artifact removal.

SMARTING PRO
  • 32 channel
    SMARTING PRO records with 32 channels.
  • 8 ExG
  • 1 bit TTL
  • 2 kHz sampling rate
  • 32 kHz channels
  • Fully un-tethered
  • 10 hours
    More than 10 hours of recordings
  • Bluetooth 5.0
    • High reliability of connection
    • Great wireless synchronization
    • High data transfer rate of 1000 Hz
  • Local SD card
  • 3D Head Motion Tracking
    Integrated 9D inertial motion unit for precise head motion tracking.
  • Real-time Artifact Subspace Reconstruction algorithm (ASR)

SMARTING PRO X

The new standard in EEG with absolute 3D head motion tracking and real-time Artifact removal.

SMARTING Pro X
  • 64 channel
    SMARTING PRO X records with 64 channels.
  • 8 ExG
  • 8 bit TTL
  • 4 kHz sampling rate
  • 64 kHz channels
  • Fully un-tethered
  • 10 hours
    Upto 10 hours of recordings.
  • Bluetooth 5.0
    • High reliability of connection
    • Great wireless synchronization
    • High data transfer rate of 1000 Hz
  • Local SD card
  • 3D Head Motion Tracking
    Integrated 9D inertial motion unit for precise head motion tracking.
  • Real-time Artifact Subspace Reconstruction algorithm (ASR)

Request Product Information

SMARTING Pro Line with model

Robust and Reliable, Bipolar Electrodes, with Easy Washing

Bluetooth 5.0 secures reliable wireless connection while retaining exquisite signal with 24-bit resolution, <1 µV input-referred noise, and common mode rejection >140 dB. An option for 8 configurable channels can be used for ExG recordings. We also designed covers for the connectors so cap washing is not a headache anymore.

SMARTING Pro Line with model

Ready for Outdoor Mode with Automatic Artifacts Removal with ASR

With automatic artifact removal algorithms and support for out-of-range recordings in the mobile app, Smarting Pro line devices provides an unparalleled outdoor recording experience. The integrated automatic real-time artifact removal is based on the Artifact Subspace Reconstruction algorithm (ASR). While the algorithm is running, the raw data are also available.

SMARTING Pro Line with model

Easy Connection and Configuration Pre-Sets with Hyperscanning Mode

Thanks to NFC technology, you can tap your phone to the pro device, and have multiple pro devices in your lab. You can now create pre-sets to reduce the possible configuration mistakes in your lab. In addition, the hyperscanning mode allows a quick and reliable setup for complex social studies. Each subject’s data is saved on the internal memory of the device.

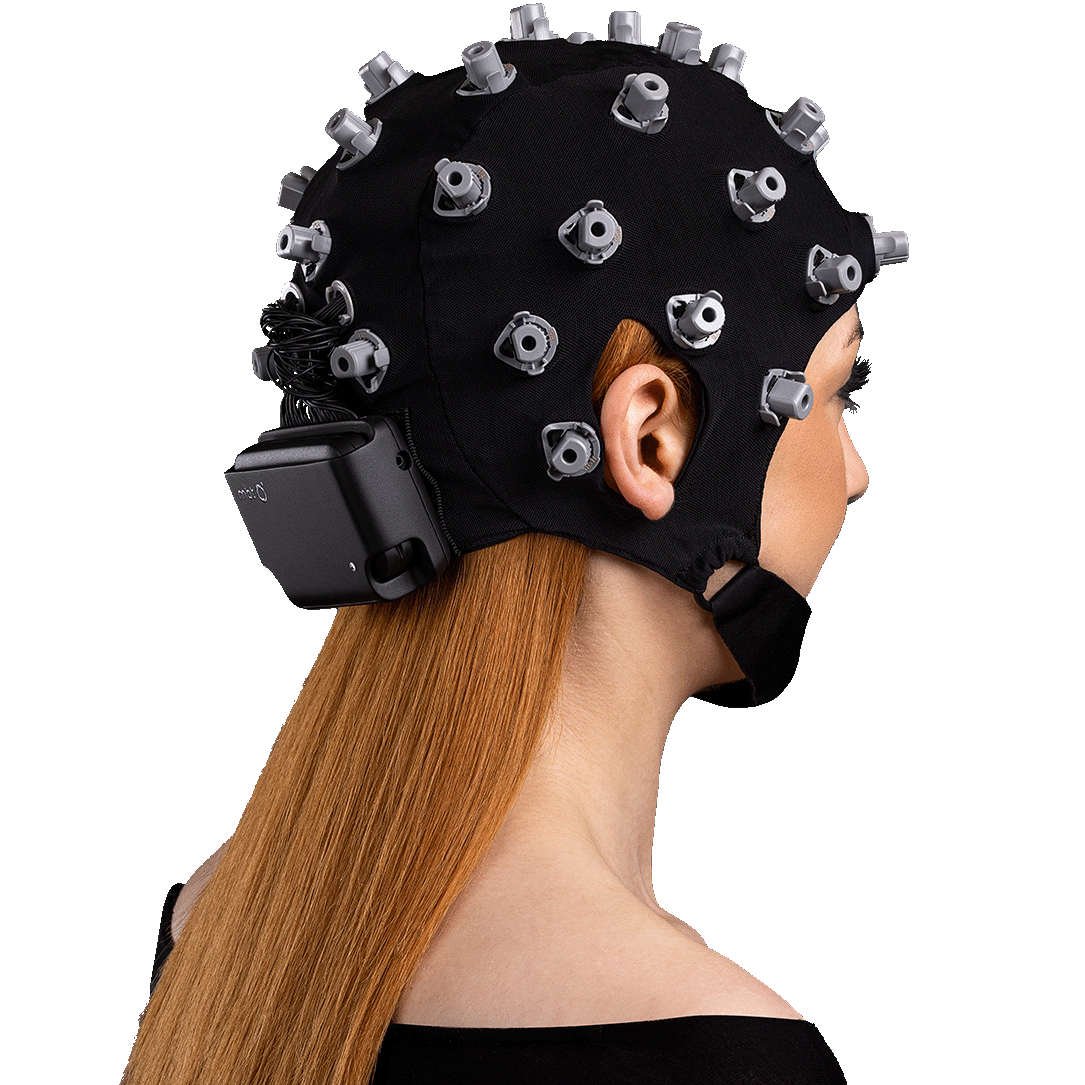

Compatible with Semi-Dry Electrodes

Semi-dry electrodes are a type of EEG recording system that uses a sponge material instead of traditional gel-based electrodes. This system requires the use of a saline solution, which helps to enhance the quality of the EEG recordings obtained. The semi-dry EEG cap is designed with the user in mind, offering a convenient and easy-to-use solution for EEG recording. In addition, this cap is unique in that it is compatible with the SMARTING platform, and does not require the user to wash their hair after the experiment has been completed. This is a major advantage compared to traditional wet electrode systems, which often require hair washing to remove the residue left behind by the gel.

Smarting pro line device with model
