ResearchFunctional Near Infrared SpectroscopyNIRSIT LITE

The NIRSIT LITE

The new light-weight brain imaging system.

Soterix Medical functional Near-Infrared Spectroscopy (fNIRS) LITE

A new portable functional Near-Infrared Spectroscopy (fNIRS) system. It is a lightweight, easily configurable, multi-channel fNIRS neuroimaging system for the prefrontal cortex, specifically targeted for research. NIRSIT LITE is designed to measure variations in cerebral hemodynamics on a real-time basis by radiating a near-infrared light beam, at two wavelengths of 780nm and 850nm of LED, into the cerebral cortex. Boasting a light weight of only 200g, it is designed to fit the head size of adults. The system comes with its dedicated monitoring and analysis software for researchers. Flexible design fits various head sizes.

The NIRSIT solution specific for adults

NIRSIT-LITE brain imaging system for kids

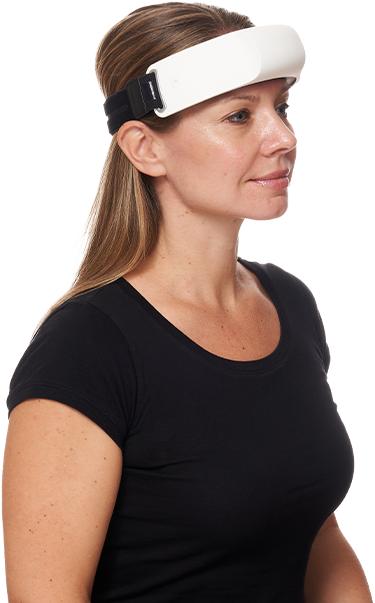

The NIRSIT LITE solution for adults is an ultra-lightweight, easy-to-use wearable system specially designed to measure hemodynamic response in the prefrontal cortex region.

The NIRSIT LITE ADULTS

NIRSIT LITE Device

Ultra lightweight - ergonomically designed to fit different head sizes.

NIRSIT LITE Device

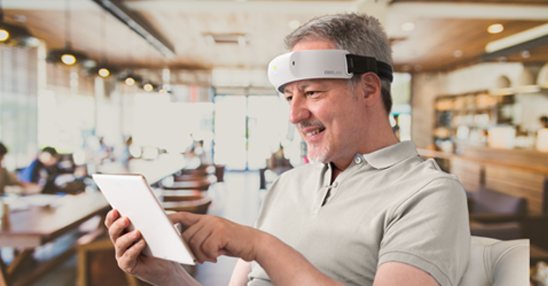

Portable and wireless - BLE wireless connection and portability to support measurements anytime, anywhere.

NIRSIT LITE Device

Multi-channel - dedicated 15 channels with short channel separation (3cm between optodes).

NIRSIT LITE Device

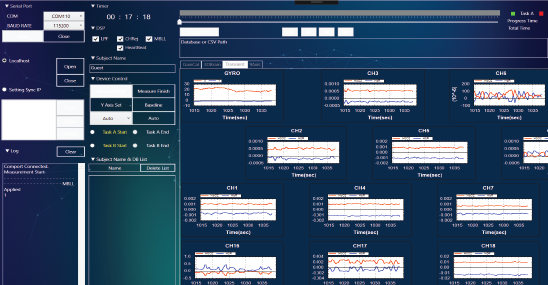

Research-oriented - synchronization with external research tools.

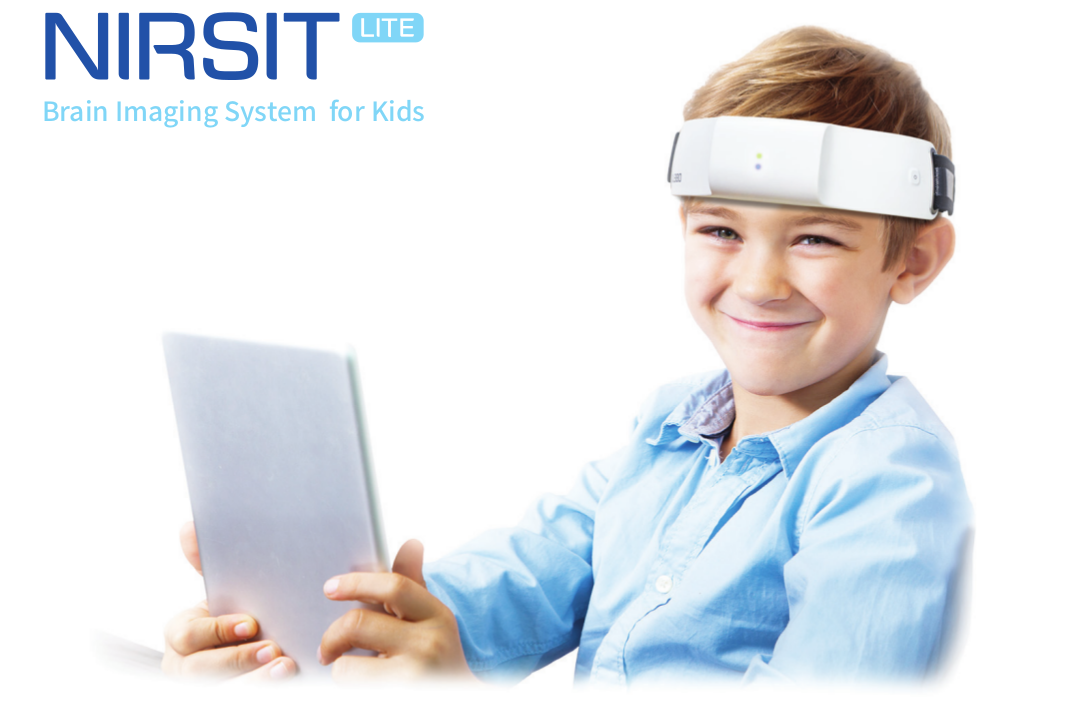

The NIRSIT solution specific for kids

NIRSIT-LITE brain imaging system for kids

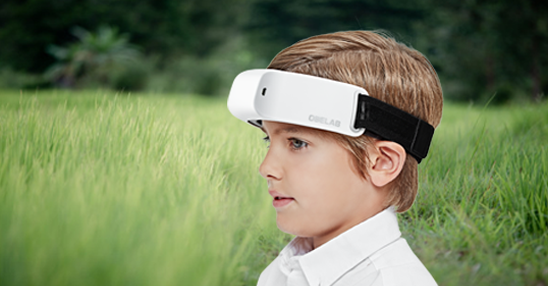

Incorporating all of the revolutionary features of the NIRSIT LITE, NIRSIT LITE KIDS is a multi channel fNIRS neuroimaging system for the prefrontal cortex, specifically targeted for research with children. As with its adult counterpart, NIRSIT LITE KIDS is designed to measure variations in cerebral hemodynamics on a real-time basis by radiating a near-infrared light beam, at two wavelengths of 780nm and 850nm of LED, into the cerebral cortex. With a light-weight of only 180g, the device’s flexible design fits various head sizes of children from preschool to highschool. The system comes with dedicated monitoring and analysis software for researchers.

The NIRSIT LITE KIDS

NIRSIT LITE Device

Ultra lightweight - Ergonomically designed for measurements on children.

NIRSIT LITE Device

Portable and wireless - BLE wireless connection and portability to support measurements anytime, anywhere.

NIRSIT LITE Device

Multi-channel - dedicated 15 channels with short channel separation (2.5cm between optodes).

NIRSIT LITE Device

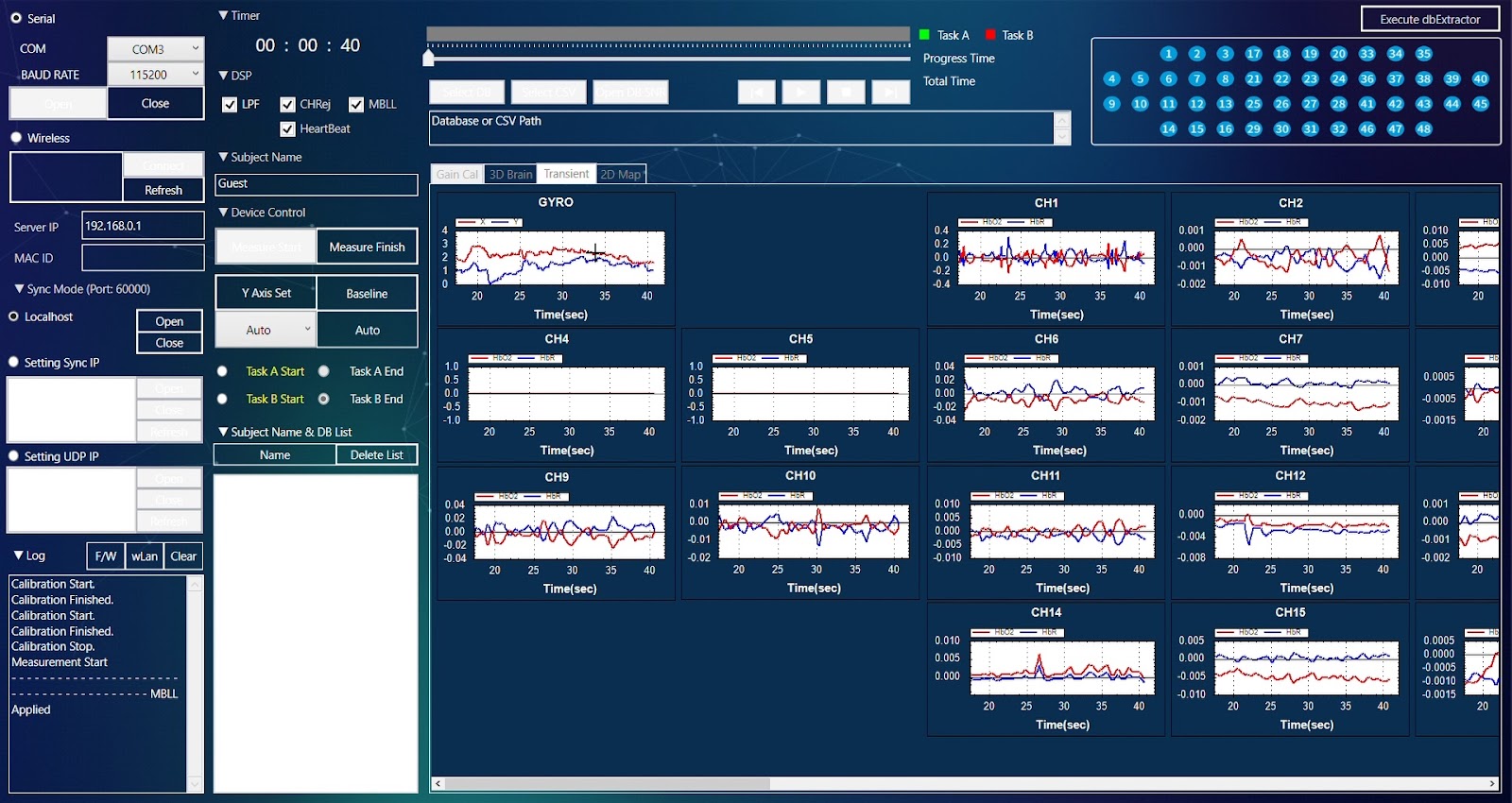

Research-oriented - synchronization with external research tools.

The NIRSIT and NIRSIT LITE systems have been used in multiple research publications including:

See all Publications＞

NIRSIT by OBELAB is exclusively distributed in the US and Canada by Soterix Medical.

Caution! Investigational Device. Federal (or United States) law limits device to investigational use.
