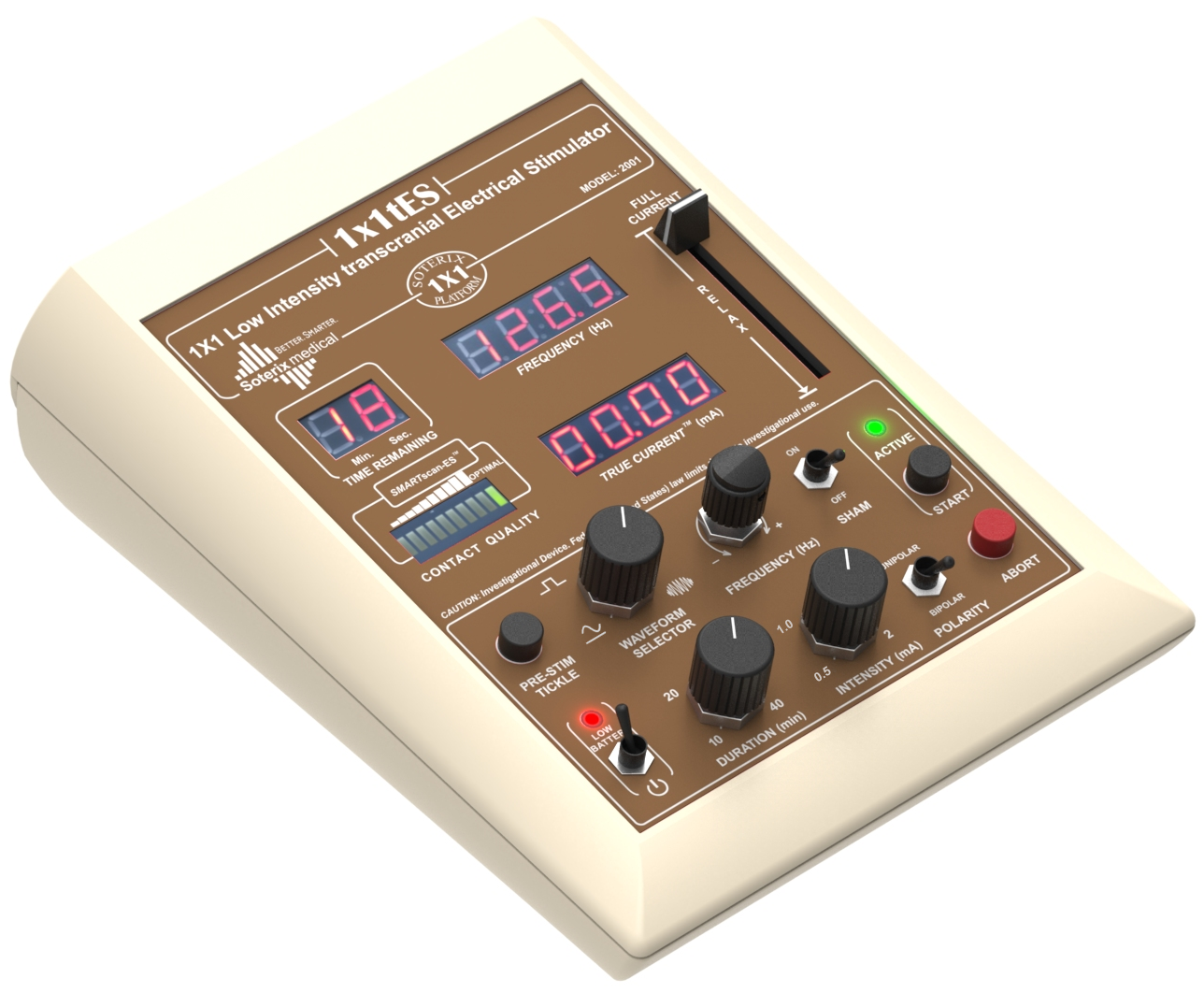

1x1 transcranial Electrical Stimulation

The 1x1-tES is the ultimate research tool for non-invasive electrical stimulation of the brain.

The Soterix Medical 1x1 transcranial Electrical Stimulation (1x1-tES) device is the most sophisticated and precise stimulator ever designed for tDCS, tACS, tPCS, and tRNS. The 1x1 tES represents a decade of biomedical and industrial design to create a device that combines unmatched flexibility, reliability, and easy-to-use through unique Soterix Medical features and the Open-Panel™ interface.

Soterix Medical tES Device

The Complete System for tES

Complete Waveforms

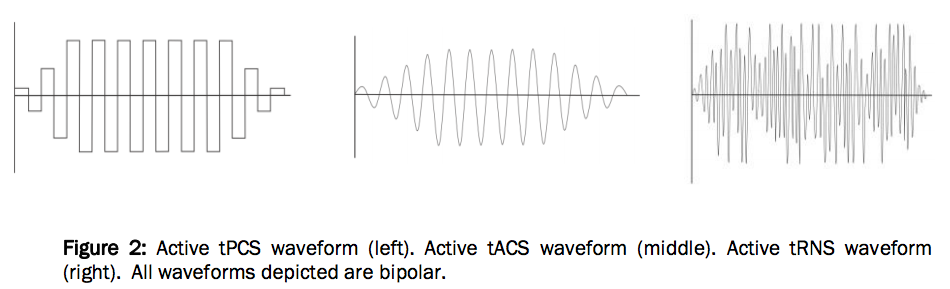

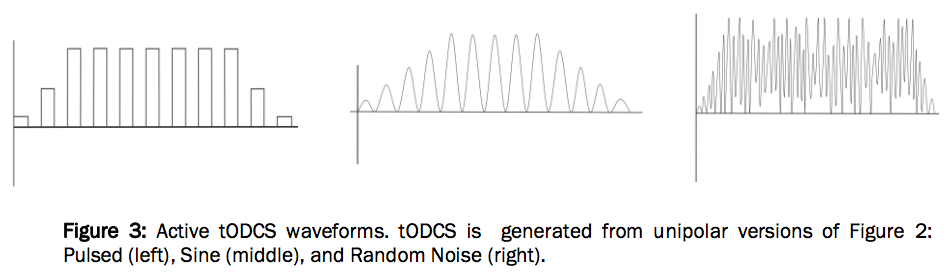

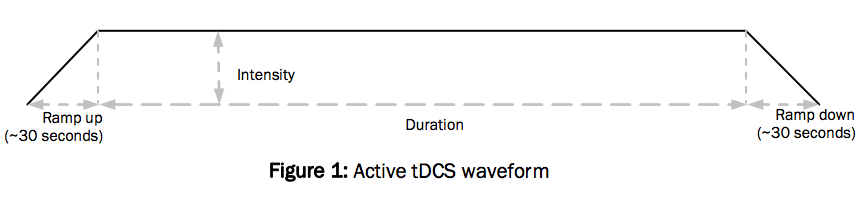

The Soterix Medical 1x1 tES device provides reproduction of tDCS, tACS, tPCS, and tRNS protocols used in clinical trials. The 1x1 tES is thus a single device that is programmed to provide a broad range waveforms. For any tES waveform, a matched sham waveform is enabled simply by engaging the sham switch. The Soterix Medical 1x1 tES is thus the best option for research labs that want the flexibility to test across tES waveforms with the established reliability and precision of the Soterix Medical 1x1 platform.

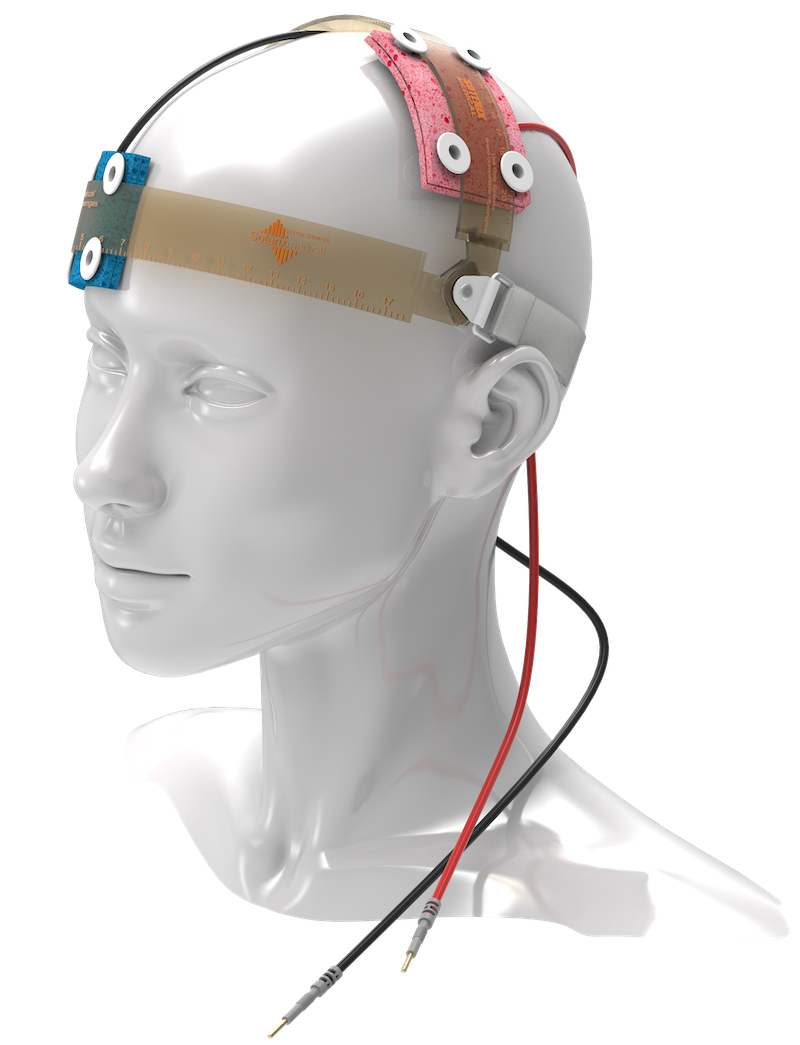

Complete Accessories

Compatibility with the state of the art 1x1 platform accessories provides even more flexibility including:

  1. The only pad electrodes designed for tES and industry standard head-gear.
  2. The ability to simply upgrade to multi-channel pad stimulation (e.g. 2x1 or 2x2) using the economical breakout boxes.
  3. Upgrade to HD-tDCS using the 4x1 adaptor and provide any waveforms with 4x1 targeting
  4. Use Soterix Medical Neurotargeting software to design and prove brain targeted montages

Soterix Medical Quality

The Soterix Medical brand represents the highest quality and standards in tES because each device is designed based on the latest science and biomedical engineering. The Open-Panel™ interface provides the simplest, most-intuitive interface while embedded electronics work over-time to ensure precision and tolerability, even under unexpected conditions. Advancing the practice of tDCS requires devices and protocols integrating the latest advances in technology and science. Soterix Medical was founded to support this effort and continues to provide unparalleled support to every user with devices and accessories that incorporate exclusive features for rigorous trial design, tolerated procedures, and reproducible protocols. Introduced in 2014, the 1x1-tES stimulator represents the most sophisticated stimulator ever built for tES while building on the validated 1x1 platform.

Request Product Information Manual & Specifications

Industry Leading Precision and Control

The most essential feature of a programmable tES device is precision and control of current output. The Soterix Medical 1x1 tES uses state of the art electrical and biomedical engineering design to provide the highest temporal and intensity precision of any tES stimulation device: Adjustable output current in increments of 10 µA, 12 bit D/A, variable sampling time for accurate reconstruction of higher frequencies - 71 µs resolution for 200Hz signals.

Control means that across physiological loads (e.g. head size and electrode impedance), the target current is maintained. Soterix Medical is the only company that provides an independent current meter, the “True-Current” feature, which demonstrates reliability continuously during use. Researchers and clinicians used the Soterix Medical 1x1 tES when the highest quality stimulation signal is required.

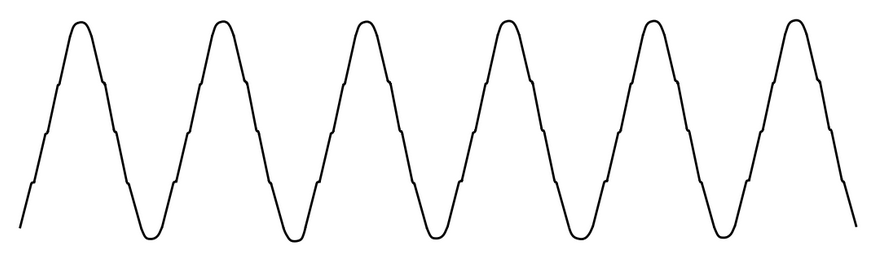

Other commercial tES device at 150 Hz

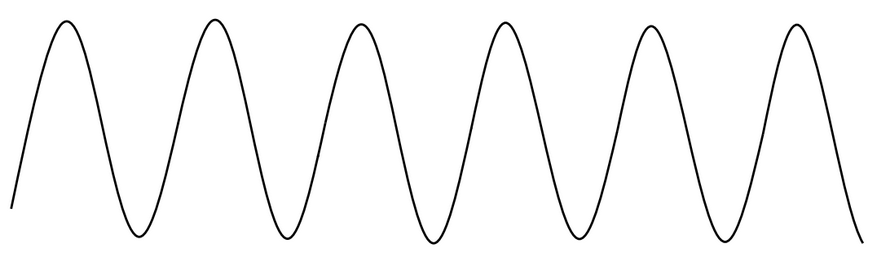

Soterix Medical tES device at 150 Hz

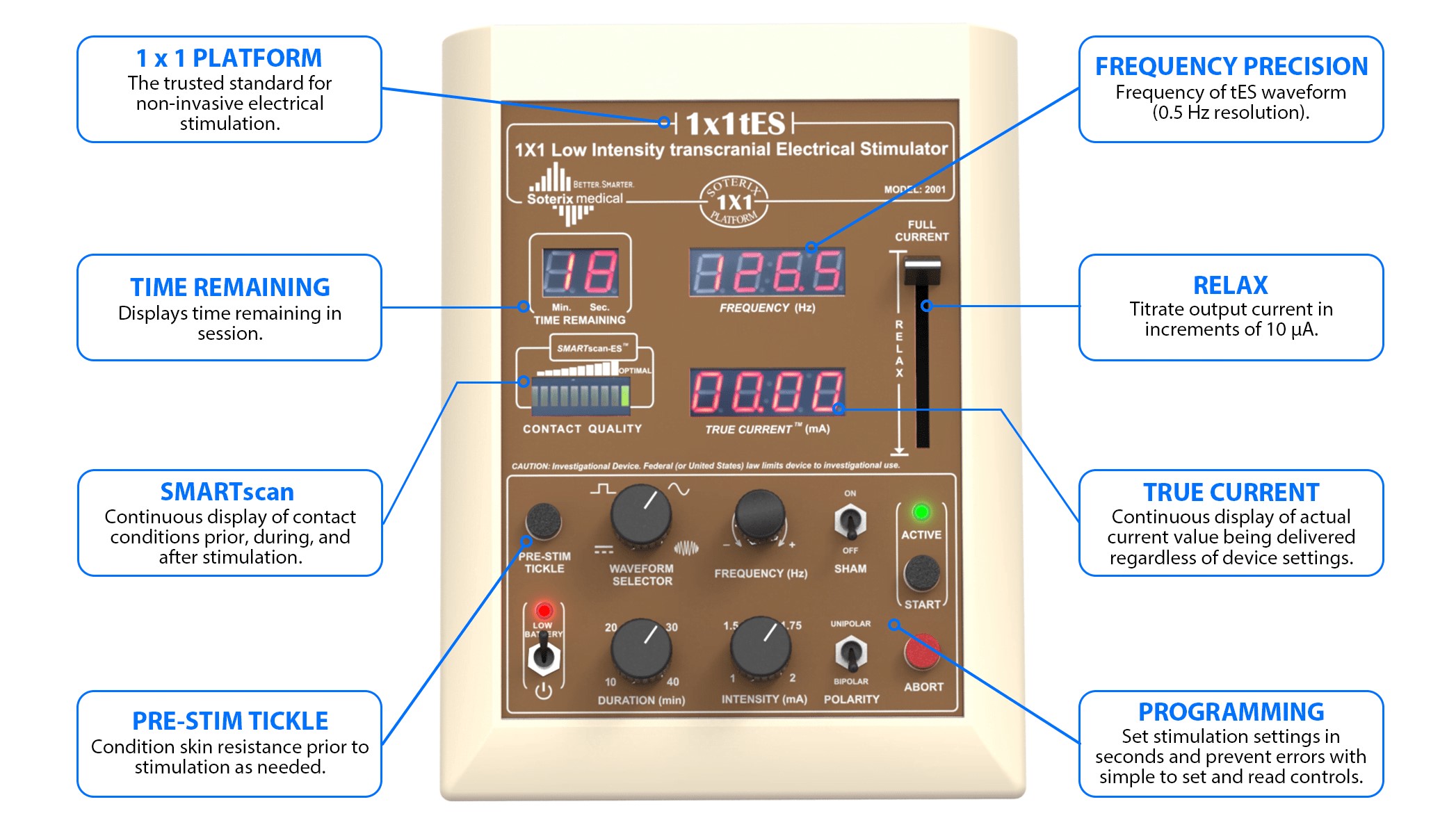

Simple to use Open-Panel™ controls

The Soterix Medical 1x1 platform devices stand out for their simple controls and interfaces. Program the device precisely in seconds, with no complex drop-down menu, hidden settings, or need to establish a wireless connection with an external computer. The device program is clearly visible through the knob settings and backlit features like SmartScan™ and TrueCurrent™. Waveform and frequency control knobs and displays make programming straightforward. With Soterix Medical Open-Panel™, simplicity and clarity means that set-up time and potential programming errors are reduced.

Focus on the subject, not the device with Open-Panel™ controls

The Soterix Medical Open-Panel™ control system was developed to allow simple dose setting in seconds. Easy-click control knobs allow simple programming of stimulation waveform, duration and intensity without mistakes caused by drop-down menus or risks with programming from a computer over wireless. Back-lit status display are visible even at a distance. SmartSCAN™ provides a constant indication of electrode quality that is intelligently adjusted based on the waveform and remaining duration. The Soterix Medical 1x1 tES is the most flexible and precise stimulator, without compromise on ease-of-use and safety.

No drop-down menus. No hidden settings. No external computer.

Design for simple and clear clinical trials with Soterix Medical Open-Panel™.

Exclusive Features

Each Soterix Medical 1×1 feature was developed by our team of biomedical engineers consulting closely with leading clinical centers. Designed to simply set-up, provide intelligent warning of a fault condition, and allow for adjusting for patient comfort, these features facilitate reliable and tolerated tES. The Soterix Medical SmartScan™ feature is central in all tES devices to allow reliable set-up and monitoring. The Relax™, Tickle™, and TrueCurrent™ innovations were developed for the 1×1 tES.

Provides a continuous visual indication of electrode quality before and during stimulation.

From pre-stimulation set-up, to during stimulation monitoring, to post-stimulation confirmation, the Soterix Medical SmartScan™ feature provides an intuitive and clear indication of electrode contact quality. Use the SmartScan™ during set-up to adjust electrodes and head-gear for optimal fit. During stimulation, SmartScan™ provides a constant indication of electrode quality and can be monitored during adjustments (e.g. addition of saline to drying electrodes). After stimulation, SmartScan™ confirms a successful trial. Because “resistance” is not meaningful for tES, SmartScan™ was developed by Soterix Medical engineers to provide clinical investigators with a simple to read indication of contact quality.

Clearly indicates the actual current supplied at the moment.

What other devices promise, the 1×1 tDCS delivers. The back-lit display can be monitored during stimulation ramp up to confirm that the targeted current intensity is achieved.

May be used to supply a very weak current prior to tDCS to help condition the skin.

Tickle™ may be used to both condition skin prior to tDCS and for naïve subject anxious about stimulation. A custom on-off waveform pattern generates mild and brief sensation under electrodes.

Allows the clinician to use a simple sliding bar to transiently decrease the current from the pre-set value, for example, based on subject feedback.

Based on feed-back from leading clinical centers, Soterix Medical exclusive feature, RELAX™, accommodates subjects who may be anxious when stimulation is initiated or during the course of stimulation. The RELAX™ slider may be adjusted from full to reduced intensity based on subject perception without interrupting or aborting stimulation.

Simple and intelligent sham waveforms.

An automatic stimulation sham feature that is engaged with a simple switch. Auto-sham automatically calculates and produces a sham waveform based on the indicated “real” waveform. For example, for a corresponding real waveform of 1.5 mA and 10 minutes, auto-sham will provide a ramp up/down to 1.5 mA at the start of stimulation and again after 10 minutes, with the timer automatically adjusted such that the total run time is exactly matched to the real case. Based on the Soterix Medical Open-Panel™ design principle: no complicated programming or hidden drop-down menus required.

Request Product Information Manual & Specifications

Fully compatible and expandable with all Soterix Medical 1x1 accessories

Every 1x1 accessory is optimized for simple and consistent set-up, robust and safe performance, and ease-of-use. Since "one size does not fit all" in tES, the 1x1 accessory set provides the flexibility to optimize performance. From EASYpads™ to EASYstraps™, Soterix Medical 1x1 accessories are designed and validated specifically for the 1x1 platform. Our scientific team is ready to help you select the best accessory set to make your 1x1 the most optimized platform adjustable to any application.

1x1 tDCS Accessories »

Fully compatible and expandable with all Soterix Medical 1x1 accessories

Unique Neurotargeting Software for tES Dose Design

Optimization of electrode montage for brain targeting and individual subject customization has never been as easy as with Soterix Medical's Neurotargeting software. With recognition that placing an electrode "over" a target does not support rational tES does design, the Soterix Medical Suite of software tools allow simple and automatic optimization. Soterix Neurotargeting software also provides high-resolution current flow visualization that can be used to support publications, presentation and proposals.

Note "HD-Explore" allows simulation of any conventional tES montage with minor allowances for frequency specific tissue conductivity

Don't be confused by copycat software that provides neither flexibility nor precision. Only HD-Explore allows you to place any shaped electrodes anywhere on the scalp and select from a range of subject heads included with the basic software.

Soterix Medical Neurotargeting Software

1×1 tES + MRI

Soterix Medical 1x1 tES systems can be used in the fMRI/MRI using a unique 1x1 tES-MRI kit. These complete kits provide an easy solution for full integration of our 1x1 tES stimulator with MRI/fMRI. The setup is rated to be compatible with any sequence in a 7T machine in Normal and First Level modes.

Soterix Medical Engineers have designed the MRI/fMRI accessories while keeping in mind the subject’s safety, stimulation tolerability, and the operator's ease-of-use. The unique setup uses filters through the patch panel for exceptional RF noise control, providing unmatched reliability. Learn more...

Unique Soterix Medical IFS-MRI kit
Caution! Investigational Device. Federal (or United States) law limits device to investigational use.
