M×N-5 and M×N-9 HD Transcranial Stimulation

5 and 9 channel devices, scalable to 82 concurrent channels

Imaging and exclusive NeurotargetingTM software compatibility

Stand-alone Open-PanelTM design

High-Definition transcranial Electrical Stimulation is a transformative technology for targeting cortical and deep brain structures with weak currents. Unlike any other neuromodulation technique, High-Definition transcranial Electrical Stimulation (HD-tES) is non-invasive, targeted, and can leverage the therapeutic potential, convenience, safety, and cost-advantages of tES. The tES techniques commonly include tDCS, tACS, tRNS and tPCS.

HD stimulation is scalable and can be integrated with any research grade EEG system. Integrated Soterix Medical Neurotargeting software and neuronavigation allows precise stimulator programming for brain targeting. Soterix Medical is the exclusive manufacturer and provider of High-Definition (HD) technology.

Soterix Medical devices provide unique performance as these products, the methods of manufacturing are the subject to one or more U.S. or foreign patients or pending applications including but not limited to US9956395B2, US8818515B2, US8718778B2.

Soterix Medical High-Definition (HD) Neuromodulation Platforms

The MxN is the flagship product line from the leader in non-invasive neuromodulation and is backed by Soterix Medical performance guarantees and our unmatched technical support. All MxN devices are compatible with exclusive HD accessories. The 4x1 HD-tDCS adaptor can upgrade any 1x1 tDCS or 1x1 tES device to 4x1 HD-tDCS/HD-tES. The MxN-5 and MxN-9 devices provide Open-Panel controls, with no external computer required, for flexible and scalable deployment. MxN-5 HD-tDCS and MxN-9 HD-tDCS are the industry standard HD-tDCS stimulators. MxN-5 HD-tES and MxN-9 HD-tES provide tDCS, tACS, tPCS, tRNS, and toDCS waveforms. The MxN 33/65 system is a fully software-controlled system with standard and arbitrary waveforms.

MxN-5 and MxN-9 HD Systems

Soterix Medical developed the MxN-5 and MxN-9 platforms to combine state of the art precision with ease-of-use. The MxN 5/9 stimulators comprise multiple, independent, and isolated channels with one common (or reference) channel. The platform is fully scalable based on 9-channel (M×N-9) and 5-channel (M×N-5) modules. This means you can start with a powerful but economical system and add channels as needed, or break your existing system into independent functioning stimulators.

The MxN 5/9 platforms comprise of two stimulators: one exclusively for transcranial Direct Current Stimulation (MXN HD-tDCS) and one for transcranial Electrical Stimulation (MXN HD-tES)

M×N-5 and M×N-9 HD-tDCS

M×N-5 and M×N-9 HD-tES

Each channel can deliver either positive or negative Direct Current (tDCS) while the common reference channel balances the residual current to ensure current conservation.

Each channel can deliver either positive or negative Alternating Current (tACS), Pulse Current (tPCS), Random Noise (tRNS), Oscillating Direct Current (tODCS) in addition to Direct Current (tDCS) while the common reference channel balances the residual current to ensure current conservation.

Optimal Resolution
From 5 to 91 channels, all MxN systems allow full control of electrode placement and current, producing unprecedented non-invasive targeting. Exclusive control technology allows true independent current control and monitoring, while custom head-gear allows electrode placement by a minimum of 10-10 or arbitrary positions.

Learn more about stimulation precision

HD Electrodes
The MxN systems feature the breakthrough Soterix Medical High-Definition (HD) electrodes, the only gel-based electrode validated in human trials to provide reliable and tolerated performance during current stimulation. Don’t be fooled by copy-cat hardware that compromises subjects and trial integrity. HD electrodes are exclusive to Soterix Medical systems.

Learn more about what makes HD electrodes unique

Neurotargeting Software
With so much flexibility, a multi-channel system is only as powerful as the software used to program it. Soterix Medical is the pioneer in software driven NeurotargetingTM. Software and MxN systems are seamlessly integrated.

Learn more about Neurotargeting for MxN

NeurotargetingTM guided current delivery

All M×N systems are HD-Targets and HD-Explore enabled allowing investigators to leverage automatic and manual dose optimization. Combine M×N with Soterix Medical Custom modeling for individually optimized treatment.

Leveraging exclusive Soterix Medical HD-electrodes, the M×N system can be configured for effective DC stimulation without sensation in most subjects. Study design benefits from the first full sensation matched sham protocols to adapt stimulation for susceptible populations and individualize treatment for efficacy and safety.

Target any cortical region with unprecedented focality in a non-invasive system. The 4x1 montage is just the beginning with MxN Stimulator and Neurotargeting software

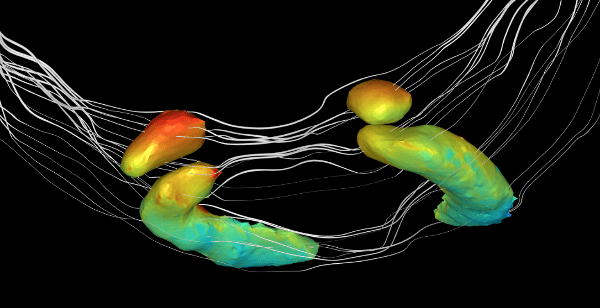

Maximize current to any deep brain regions. HDexplore and HDtargets allow you to design and evaluate stimulation strategies.

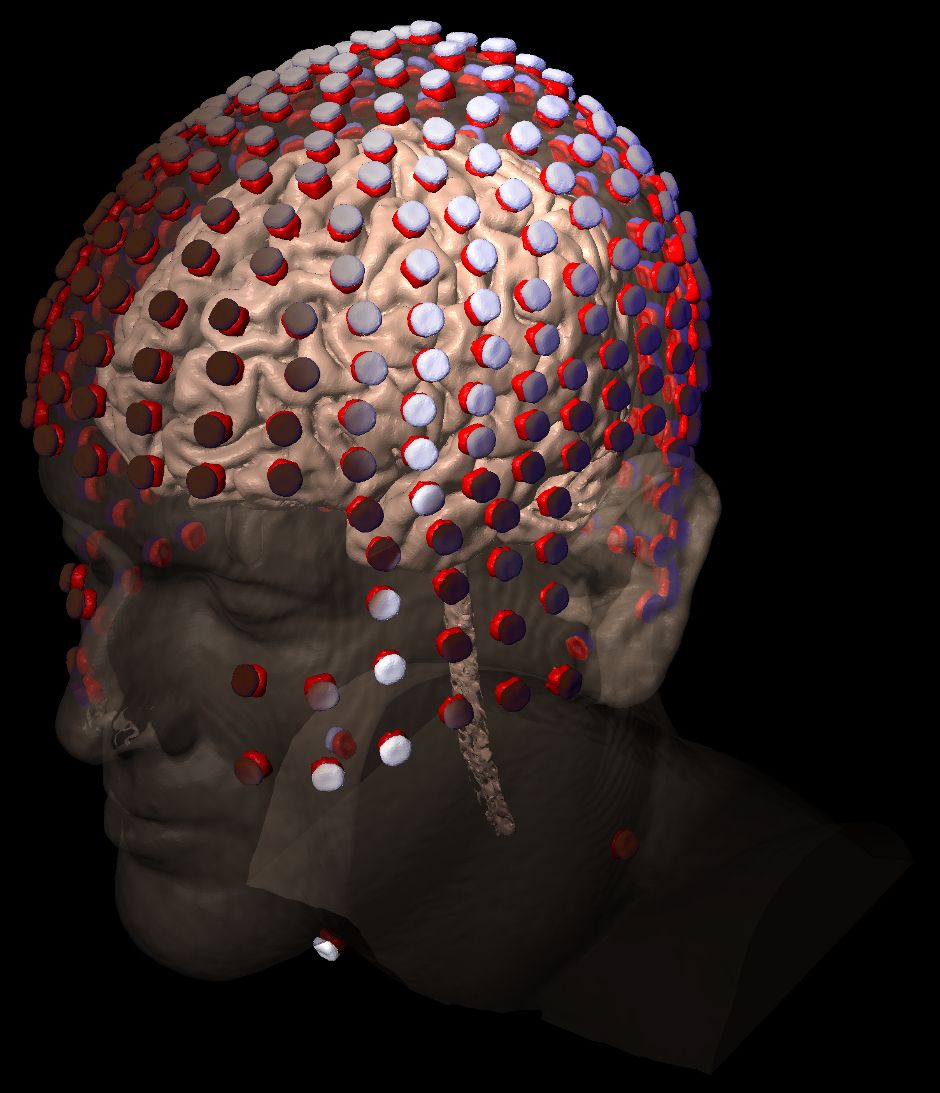

Precision and flexibility derives from the number of stimulation channels and the ability to position those channels anywhere on the scalp (not just limited to EEG 10-10).

Flexible and Expandable with 5× and 9× modules

MxN systems are designed in fully independent 5-channel and 9-channel modules that can be operated independently or stacked. Users can therefore develop modular systems that be expanded up to 82 independent channels for maximum flexibility in current guidance. 5-channel systems (which include a fifth reference channel) provide industry standard HD-tES for deployments such as 4x1 and 2x2. The 9-channel system can be further optimized for multiple targets. Stack systems together to provide modular increase in targeting up to eight 9-channel systems (or 16 5-channel systems). Modular design means you can always expand on existing systems or divide stacked systems.

Soterix Medical recommends EASYcarts for portable and safe storage of single module systems with full accessories. Soterix Medical recommends HD-Carts for stacked systems.

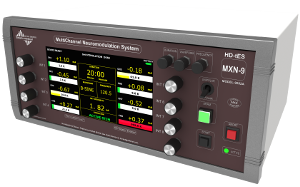

Soterix Medical MxN-9 HD-tES Module. Fully stand-alone with on-board OpenPanel controls and displays, and kickstand arm.

Why a “return” channel? Several essential reasons. First, the total current from all channels must equal zero – the return channel automatically carries the inverse of the sum of all other channels. Second, only by using a reference channel can the Neurotargeting software be used to rationally optimize current flow. Without Neurotargeting software, optimization of current at each electrode is complex. Finally, the reference channel facilitates stacking – during stacking the reference channel is shared across systems ensuring safety.

Examples of basic stacking configurations

Stand-alone M×N-5 and M×N-9 modules are powerful base systems for HD-tES allowing independent control of 5 and 9 channels respectively. Add additional channel modules as needed to these popular base systems.

Basic stack of two MxN-9’s allowing for control on 17 independent channels. One channel is shared to ensure safety and performance*. The stack can also be separated and the systems used independently.

MxN-9 tower (rack and PC/software sold separately). Both MxN-5 and MxN-9 units can be rack mounted. Soterix Medical MxN stacks are the only non-invasive electrical stimulation systems capable of true multi-channel stimulation with unprecedented capabilities to focus current to brain targets. With unmatched HD stimulation channel density and true independent current control at each channel, Soterix Medical's exclusive Neurotargeting Software becomes an essential programming tool. The combination of MxN stacked stimulation systems and Neurotargeting Software provides researchers and clinicians the ability to design interventions that are hypothesis driven based on precise anatomical targeting. But for teams that prefer to start with a more basic stimulation platform such as the 4x1 Adaptor or stand-alone MxN-5 or MxN-9 modules, there is reassurance that all your equipment and HD accessories can be continuously upgraded.

OpenPanelTM Controls for Simple and Safe Operation

Soterix Medical design means advanced features and flexibility, not complex controls or programming. The MxN line has interfaces built on the Soterix Medical OpenPanel design philosophy. All controls and displays are visible on the back-lit front panel including real-time TrueCurrent monitoring for each channel. No hidden drop down menus which can lead to programming errors. No need to connect to a remote computer which is subject to sudden losses in wireless connectivity. The MxN system is designed from the ground-up to meet Soterix Medical exacting standards for medical device technology. The difference between copy-cat systems is obvious.

Exclusive and Validated Soterix Medical Technology

The Soterix Medical M×N platform presents the only multi-channel systems validated in clinical trials, the only systems qualified with exclusive Soterix HD electrodes, and the only systems guided by Soterix Medical Neurotargeting software. Do not compromise subject safety: Avoid hazardous copycats. Multi-channel stimulation requires scientific rigor.

MxN-5/MxN-9 + MRI

Soterix Medical MxN-5/MxN-9 systems can be used in the fMRI/MRI using a unique MxN-5/MxN-9-MRI kit. These complete kits provide an easy solution for full integration of our MxN-5/MxN-9 stimulator with MRI/fMRI. The setup is rated to be compatible with any sequence in a 7T machine in Normal and First Level modes.

Soterix Medical Engineers have designed the MRI/fMRI accessories while keeping in mind the subject’s safety, stimulation tolerability, and the operator's ease-of-use. The unique setup uses filters through the patch panel for exceptional RF noise control, providing unmatched reliability. Learn more...

Unique Soterix Medical IFS-MRI kit

Device Features

Each Soterix Medical MxN device feature was developed by our team of biomedical engineers consulting closely with leading clinical centers. Designed to simply set-up, provide continuous warning of a fault condition, and allow for true (independent) current monitoring. These features facilitate reliable and tolerated multi-channel stimulation.

Provides a continuous visual indication of electrode quality before and during stimulation.

From pre-stimulation set-up, to during stimulation monitoring, to post-stimulation confirmation, the Soterix Medical CHANNEL QUALITY feature provides an intuitive and clear indication of electrode contact quality. Use the CHANNEL QUALITY during set-up to adjust electrodes and head-gear for optimal fit. During stimulation, CHANNEL QUALITY provides a constant indication of electrode quality and can be monitored during adjustments (e.g. addition of gel to improve HD electrode contact). After stimulation, CHANNEL QUALITY confirms a successful trial.

Clearly indicates the actual current supplied at the moment.

What other devices promise, the Soterix Medical MxN devices deliver. The individual displays can be monitored throughout (during stimulation ramp-up to confirm target current intensity is achieved, desired current delivery during stimulation, and stimulation ramp-down to confirm end of stimulation).

Simple and intelligent sham waveforms.

An automatic stimulation sham feature that is engaged with a simple switch. Auto-sham automatically calculates and produces a sham waveform based on the indicated “real” waveform. For example, for a corresponding real waveform of 1.5 mA and 10 minutes, auto-sham will provide a ramp up/down to 1.5 mA at the start of stimulation, and again after 10 minutes, with the timer automatically adjusted such that the total run time is exactly matched to the real case. Based on the Soterix Medical OpenPanel design principle: with no complicated programming or hidden drop-down menus required.

Provides continues monitoring of conditions during HD multi-channel stimulation

An exclusive technology from the trusted leader in neuromodulation, Soterix Medical HD-monitor is an intelligent oversight system that provides continuous monitoring of current flow conditions and will warn operator should unusual performance be detected. Multi-channel HD stimulation is the most advanced non-invasive neuromodulation system, providing tremendous flexibility to operators. HD-monitor provides a further level of automatic over-sight before, during, and after stimulation.

The only platform designed to allow channel upgrades.

No other multi-channel stimulation system is engineered to allow for scalability. The exclusive SCALABLE features integrated into every MxN device allows operators to feel comfortable knowing they can begin multi-channel with the most economical option without losing future scalability.

HD devices designed to integrate with Soterix Medical Neurotargeting Software.

Multi-channel stimulation devices are only as customizable as the software used to design montages. With independent current control at each electrode with MxN devices, device power and flexibility requires intelligent montage design software. Neurotargeting software is the exclusive Soterix Medical solution to montage design and our MxN stimulators integrate seamlessly. Clinicians and scientists trust Soterix Medical engineers to provide the modeling and software sophistication to fully leverage HD-tDCS and HD-tES.

Caution! Investigational Device. Federal (or United States) law limits device to investigational use.
