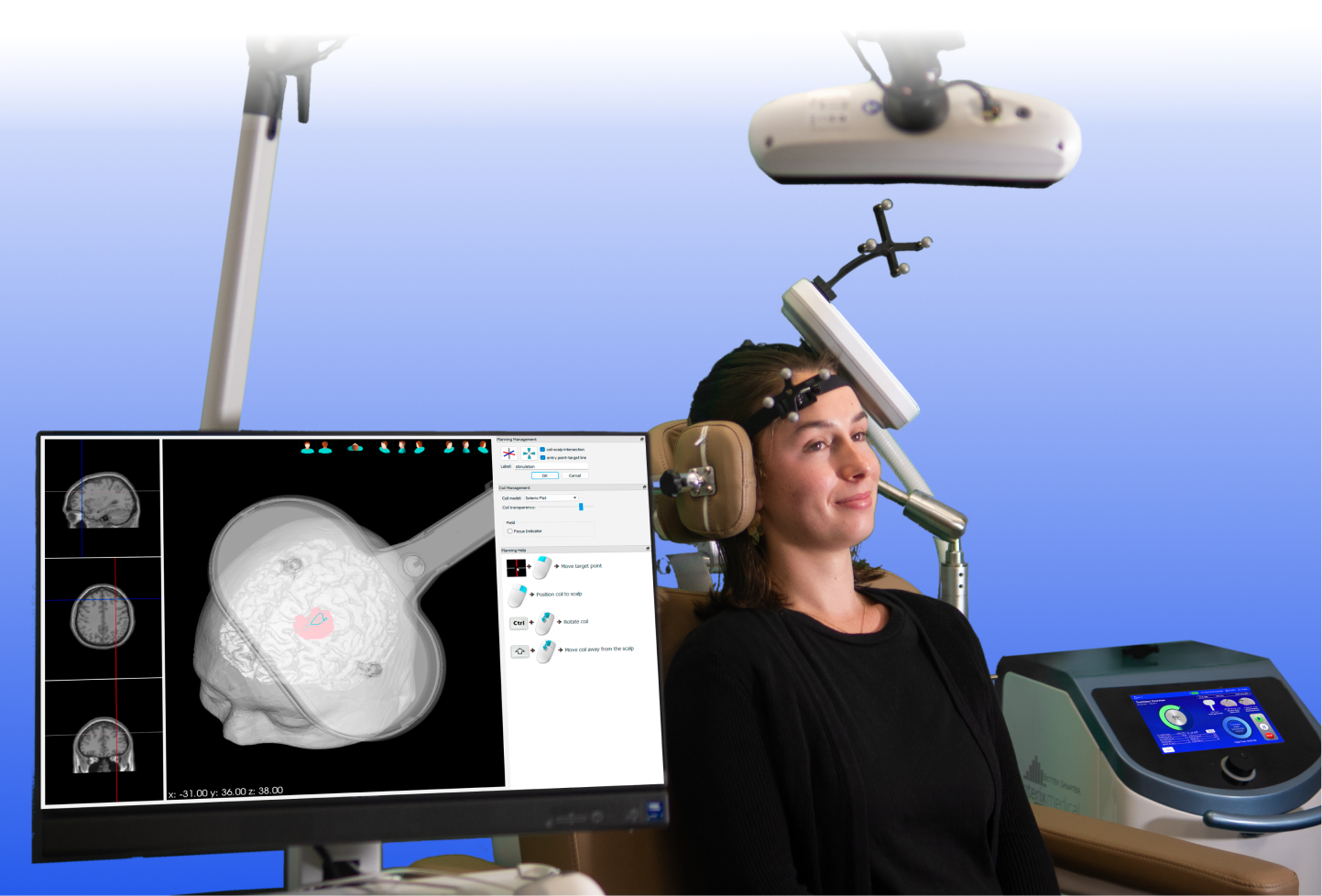

Soterix Medical SPRY POINT rTMS Navigation System

Accurate and precise navigation for the SPRY TMS system, along with compatibility for other leading rTMS systems on the market.

SPRY POINT System

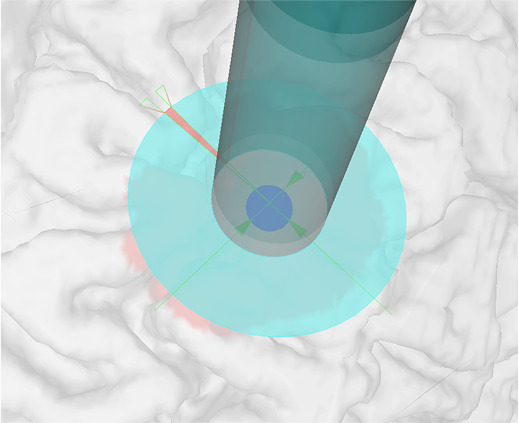

Guided TMS Neuronavigation

Guided TMS Neuronavigation

Accurate and reliable positioning of a TMS coil is critical, yet not a trivial task. Even a millimeter of displacement from the intended target can compromise results. Moreover, because no two brains are alike, coil placement methods based solely on head shape (the “5 cm rule”) or the International 10–20 EEG system are often ineffective.

The SPRY POINT Navigation System delivers unmatched precision in positioning the TMS coil directly over the specified target, ensuring consistency and confidence in every session.

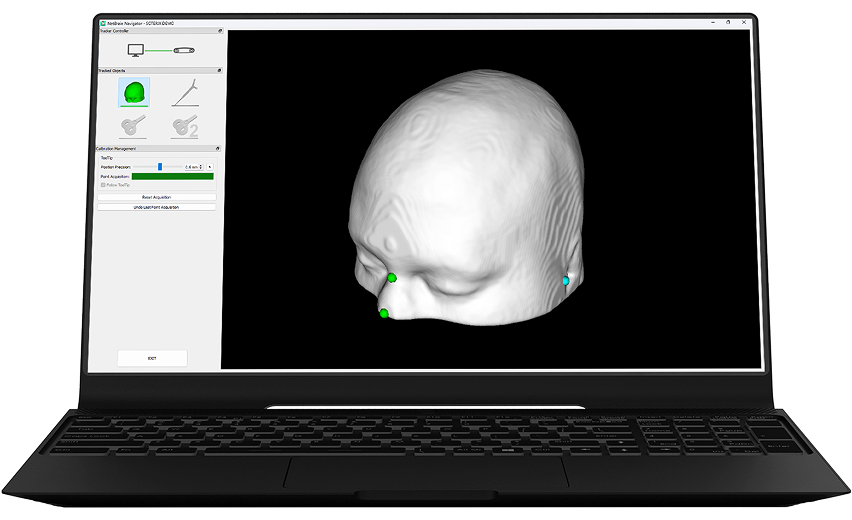

MRI-free Navigation

Individualize a standard head model to each subject through transformations guided by unique landmarks.

MRI-free Navigation

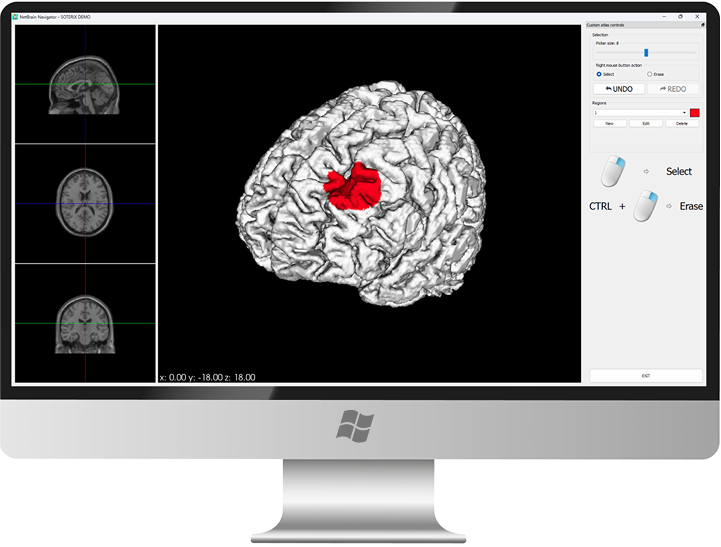

MRI Guided Navigation

Take SPRY POINT Navigation to the next level with the Advanced Anatomy Upgrade,
a premium add-on for real-time MRI-guided Neuronavigation.

MRI Guided Navigation

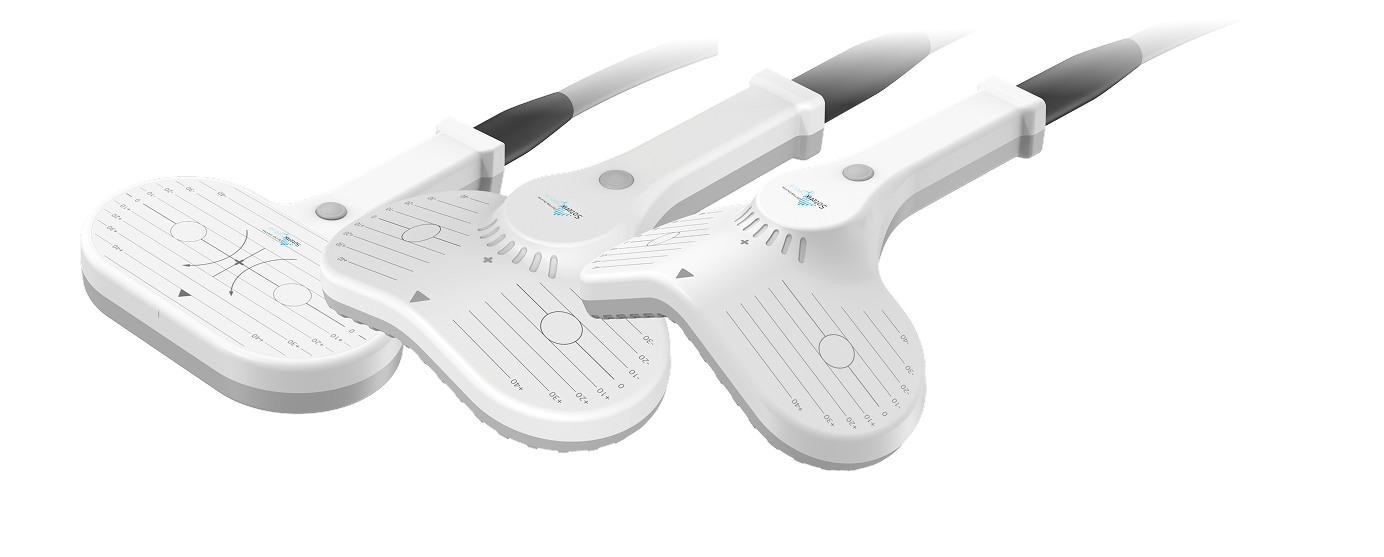

Compatible with all SPRY TMS coils

Including all major manufacturers' wand-style coils

SPRY TMS coils

Improving TMS Efficacy Through Individualized, Navigated Targeting

No two brains are alike, making precision placement of the coils used in TMS therapy tricky. Precise and reliable positioning can make the difference between a successful result and an unsatisfactory one. Conventional coil placement is done using anatomical landmarks like the bridge of the nose, the projecting part of the back of the skull, etc. to align the coil over an intended brain target. This is called the “non-navigated approach." This approach does not need the patient’s MRI.

The “navigated approach,” on the other hand, uses the patient’s MRI, thereby taking into account the individual’s anatomy. From the MRI, one marks out desired brain targets using individual brain landmarks (gyri and sulci). Once marked, the coil can be positioned within a mm of precision over the target. Any subject or operator movement can be immediately compensated for as the brain target is always visible. This approach is similar to the one taken in image-guided stereotaxy when performing brain surgery. Studies have shown unequivocally greater benefit (up to twice as much) when using a navigated approach over the non-navigated one for TMS treatment.

MRI Guided Navigation

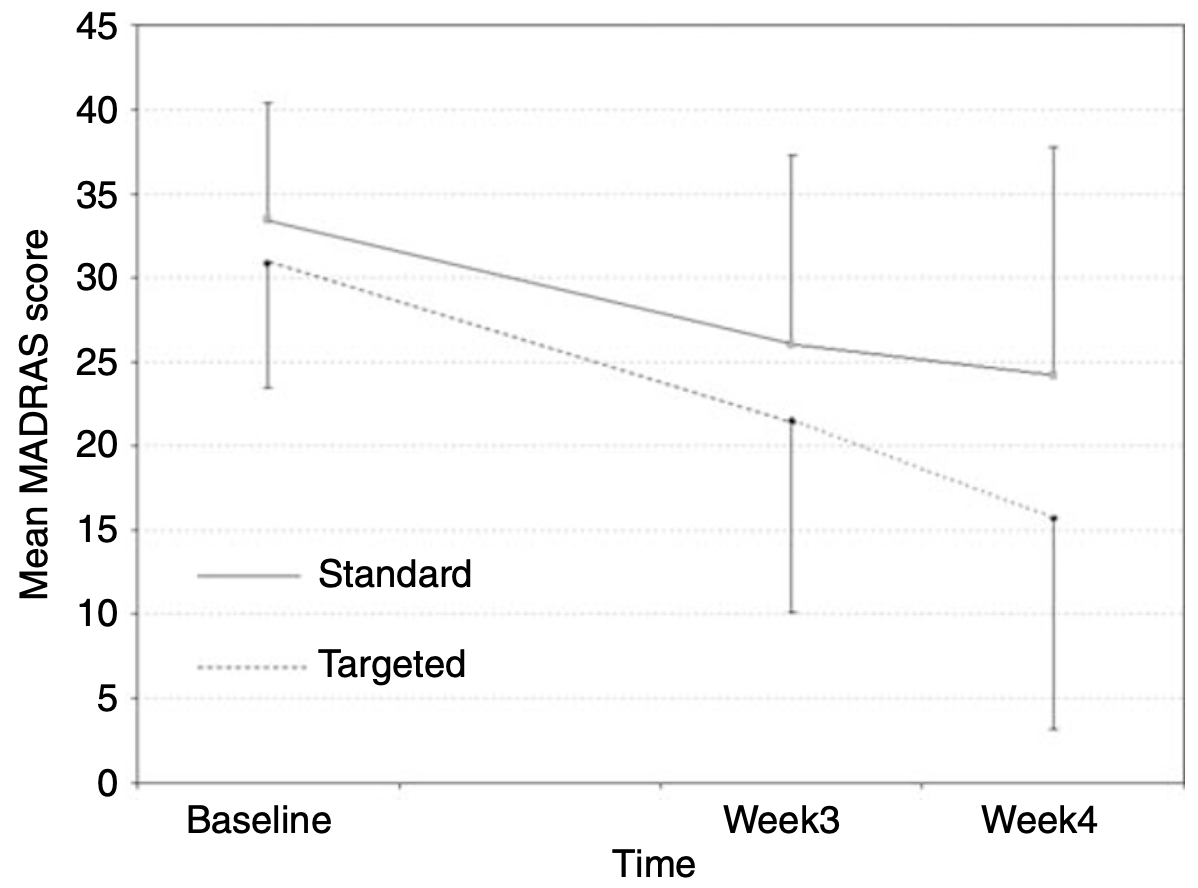

Figure 2. Change in Montgomery-Asberg Depression Rating Scale (MADRS) scores (least square means) over time.

Figure on left from "A randomized trial of rTMS targeted with MRI based neuro-navigation in treatment-resistant depression" Fitzgerald PB, Hoy K, McQueen S, et al. Neuropsychopharmacology 2009.

'Standard' indicates Non-Navigated approach

'Targeted' Indicates Navigated approach

Caution! Investigational Device. Federal (or United States) law limits device to investigational use.
