1x1 CT

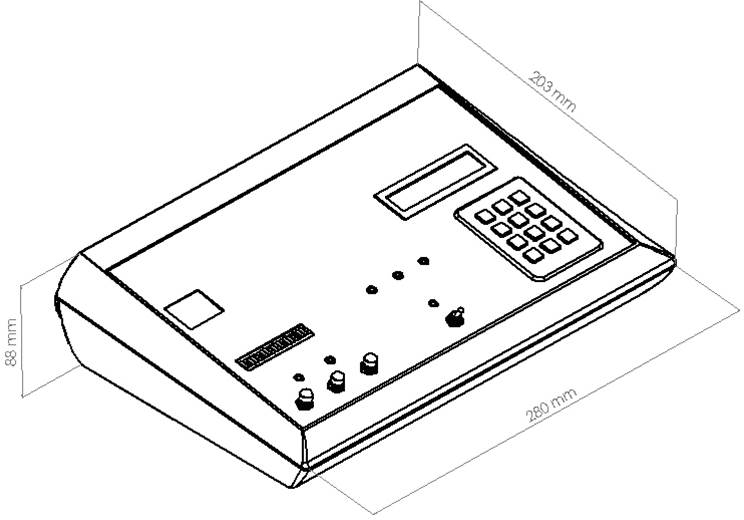

Weight and Dimensions

Weight: 2.0lb

Electrical and Operating Characteristics

Power source: 4, 9V Alkaline batteries

Battery life (with fresh batteries): 5 hrs

Maximum Output Current: 2000 µA DC± 1%

Maximum Output Voltage: 40V ± 5%

Connector type: shielded banana

Adjustable duration up to 40 minutes

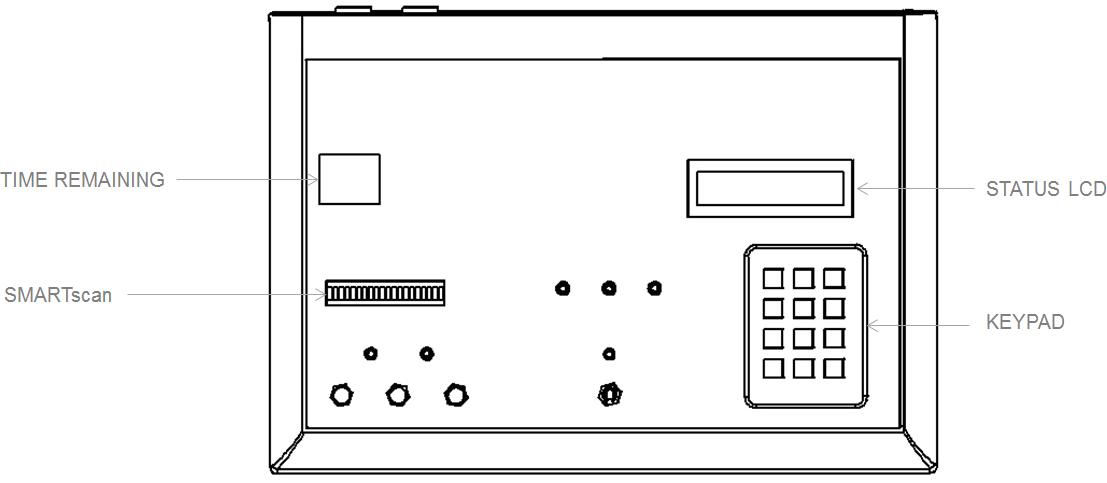

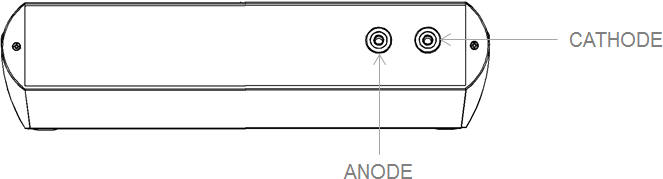

Front Panel and Back Panel
