1x1 tES

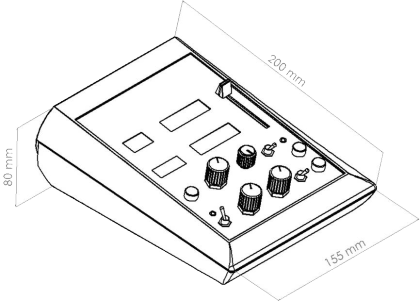

Weight and Dimensions

Weight: 1.2lb

Electrical and Operating Characteristics

Power source: 2, 9V rechargeable batteries

Battery life (fully charged batteries): 6 hrs

Maximum Output Current: 2000 µA DC ± 1% (5000 µA DC± 1% available upon request)

Maximum Output Voltage: 40V ± 5%

Connector type: shielded banana

5 standard modes: DC (tDCS and tODCS) and non-DC (tPCS, tACS, tRNS)

Adjustable frequencies up to 200 Hz with 0.5Hz resolution

Adjustable duration up to 40 minutes

Adjustable current intensity up to ± 2,000 µA

Trigger: Triggers at +5V on positive edge TTL

Maximum Input: +15V
Minimum pulse duration: 100 microsecond

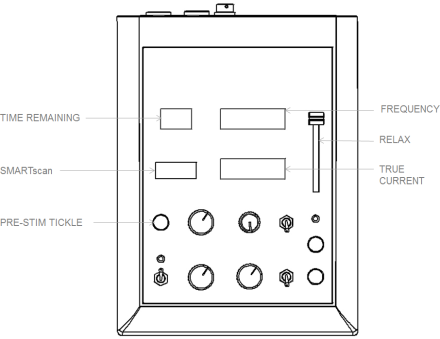

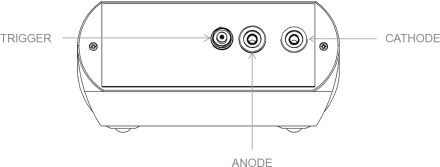

Front Panel and Back Panel
