Configure 1x1 tES

Sponge electrodes with conductive rubber inserts

Reliable Set-Up

EASYpads are the only electrode system designed by biomedical engineers for the 1x1 platform. Designed for simplicity and consistency, for the most sensitive step in the tDCS/tES setup.

Uniform Current Delivery

Soterix Medical’s Proprietary rivet design helps to minimize current concentration at electrode edges, which can lead to current-density “hot-spots”. Uniform current density means tolerated and consistent performance.

Performance Over Time

EASYpad are designed to provide consistent performance over the duration of a tDCS/tES session, including setup time. Their hyper-absorbent material also allows supplementing saline during stimulation as needed, based on feedback from the SmartScan device sensor.

Medical Grade

The only sponge electrode for tDCS/tES made from medical grade materials and certified bio-compatible (single use only). In medical settings, where safety and tolerability cannot be compromised, Soterix Medical EASYpads are used.

Compatibility with 1x1 systems

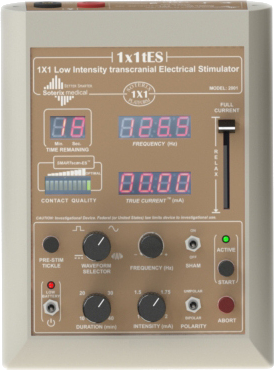

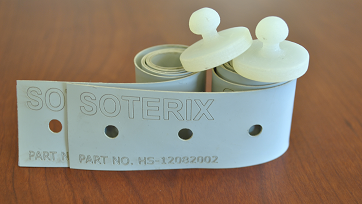

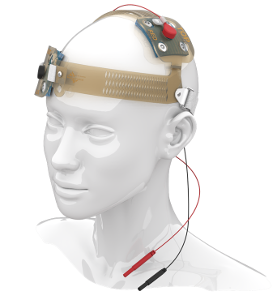

Soterix Medical 1x1 systems are designed to work together. EASYpads integrate with headgear such as EASYstraps while 1x1 stimulators scan EASYpad impedance during set-up.

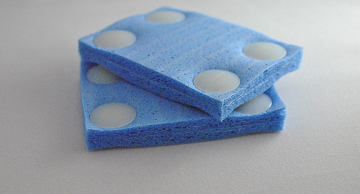

The Soterix Medical EASYpads provide simple and consistent set-up. Each EASYpad receives a conductive rubber insert that is designed to work with the EASYpads and is connected to a 1x1 device. The proprietary rivet design helps to minimize current concentration at electrode edges, which can lead to current density “hot-spots”. Whereas other sponge electrodes result in current connection at the edges leading to variable tolerability, rivets steer current uniformly across the skin surface. In addition, the sponge material is optimized for saturated skin contact for the duration of a tDCS/tES application. EASYpads are compatible with Soterix Medical EASYstraps, allowing for accurate and reproducible sponge placement.

Optimized Soterix Medical Sponge electrodes

• EASYpad 5×3
• EASYpad 5×5
• EASYpad 5×7
• EASYpad 5×10

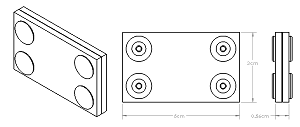

5x3cm EASYpad

Model: SMI_EASYpad_5x3_50 (50 EASYpads)
Model: SMI_EASYpad_5x3_20 (20 EASYpads)
Single Pad Dimensions: 5 cm x 3 cm x 0.56 (depth) at saturation.
Use: Single use only. Use only with approved SMI devices.
Materials: Dual Soterix Medical medi-foam for limited-output tES.
Current Dissipation Rivets: Four. Compatible with Soterix Medical EASYstraps.
Conductive Rubber: Soterix Medical Conductive-Rubber-1 (Model SMI_CR1) - sold separately.
Electrolyte: Saline, Soterix Medical Saline (model SMI_SL) - sold separately.

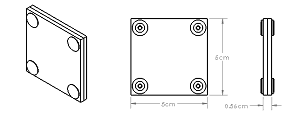

5x5cm EASYpad

Model: SMI_EASYpad_5x5_50 (50 EASYpads)
Model: SMI_EASYpad_5x5_20 (20 EASYpads)
Single Pad Dimensions: 5 cm x 5 cm x 0.56 (depth) at saturation.
Use: Single use only. Use only with approved SMI devices.
Materials: Dual Soterix Medical medi-foam for limited-output tES.
Current Dissipation Rivets: Four. Compatible with Soterix Medical EASYstraps.
Conductive Rubber: Soterix Medical Conductive-Rubber-1 (Model SMI_CR1) - sold separately.
Electrolyte: Saline, Soterix Medical Saline (model SMI_SL) - sold separately.

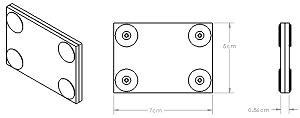

5x7cm EASYpad

Model: SMI_EASYpad_5x7_50 (50 EASYpads)
Model: SMI_EASYpad_5x7_20 (20 EASYpads)
Single Pad Dimensions: 5 cm x 7 cm x 0.56 (depth) at saturation.
Use: Single use only. Use only with approved SMI devices.
Materials: Dual Soterix Medical medi-foam for limited-output tES.
Current Dissipation Rivets: Four. Compatible with Soterix Medical EASYstraps.
Conductive Rubber: Soterix Medical Conductive-Rubber-1 (Model SMI_CR1) - sold separately.
Electrolyte: Saline, Soterix Medical Saline (model SMI_SL) - sold separately.

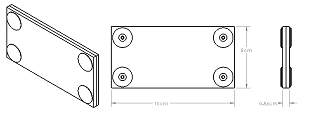

5x10cm EASYpad

Model: SMI_EASYpad_5x10_50 (50 EASYpads)
Model: SMI_EASYpad_5x10_20 (20 EASYpads)
Single Pad Dimensions: 5 cm x 10 cm x 0.56 (depth) at saturation.
Use: Single use only. Use only with approved SMI devices.
Materials: Dual Soterix Medical medi-foam for limited-output tES.
Current Dissipation Rivets: Four. Compatible with Soterix Medical EASYstraps.
Conductive Rubber: Soterix Medical Conductive-Rubber-1 (Model SMI_CR1) - sold separately.
Electrolyte: Saline, Soterix Medical Saline (model SMI_SL) - sold separately.

The Clinical Neuromodulation CART is designed to allow accessible storage for all your tDCS devices and accessories. 1x1 tDCS and HD-tES are medical devices and no company has the depth of experience as Soterix Medical does in designing tDCS devices and accessories that provide the highest level of rigor and control. The Clinical Neuromodulation Cart is the only portable station designed from the ground up to allow safe and consistent tDCS/HD-tES application. Clinical Neuromodulation Cart allows you to focus on the subject with everything you need close at hand and stocked. Reinforced plastic protects your equipment from unexpected bumps while the key code digital lock provides security against tampering.

The Clinical Neuromodulation CART includes an adjustable bin system that can be customized to your needs and integrated with all Soterix Medical accessories. Our customer support team is ready to design your custom Clinical Neuromodulation Cart system for you.

Materials: Formed steel, aluminum, heavy-duty polymer work surface/end panels

Size:  31.5 in, 24 in , 43.75 in

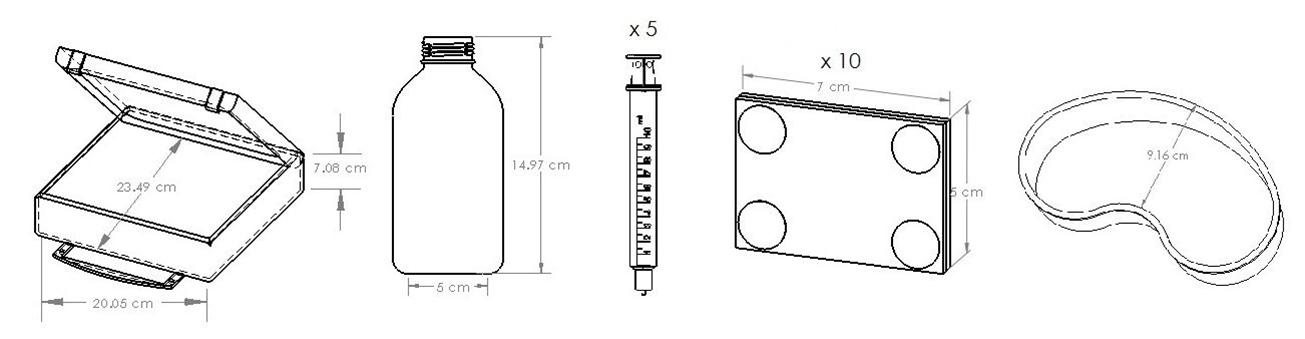

The 5-session EASYkit comprises the disposable saturation container, a plastic bowl, 500 ml saline, 5 syringes, 10 cotton swab sticks, and 10 EASYpads. For a weeklong trial, each 5 session EASYkit can be conveniently assigned to a specific subject. This helps you in keeping track of remaining sessions for the subject as you use up the supplies.

Container Material: High Impact Polystyrene

Exterior Dimensions: 20.05cm x 23.49cm x 7.08cm (depth)
